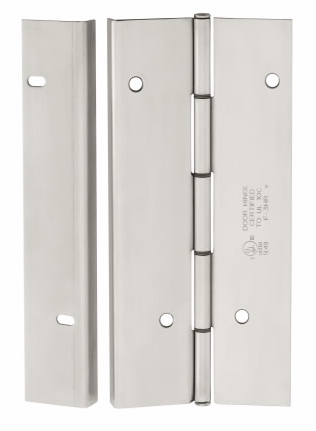

Markar HG305 Edge Mount Pin & Barrel Hinge Guard, Double Return, Stainless Steel
Markar HG305 Edge Mount Pin & Barrel Hinge Guard, Double Return, Stainless Steel
Markar HG305 Edge Mount Pin & Barrel Hinge Guard, Double Return, Stainless Steel
Markar HG305 Edge Mount Pin & Barrel Hinge Guard, Double Return, Stainless Steel

Markar HG305 Edge Mount Pin & Barrel Hinge Guard, Double Return, Stainless Steel

SKU: HG305-83

Brand :

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$475.80
$475.80
Item Size: 83 1/8in.
Subtotal: $475.80
Questions? Live Chat, or Call 332-255-3200

Quick Overview

The integral hinge guard protects the door from dings and gouges from carts and gurneys while providing clean lines and aesthetic appearance. Our HG products also have fire ratings up to and including 3 hours.

  • 3⁄16" diameter stainless steel barrel type hinge pin (rod). Medical bearings. Stainless steel end pins
  • Heavy-duty 14 gauge, 304 stainless steel, finished in US32D (630)
  • Fasteners concealed when door is closed. Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
  • Supports weight up to 600lbs. 4'0" maximum door width
  • Symmetrically templated hole pattern. Handing required for 6'8" and 7'2" and for most optional features listed
  • Exterior barrel diameter .438 (7⁄16)
  • Optional features include US32 Bright Polished Stainless (629), custom lengths (specify handing and length in inches), custom hole patterns, tamper-proof security screws
  • ANSI/BHMA Standard A156.26 Grade 1

Secured and trusted checkout with

Details

Markar HG305 Edge Mount Pin & Barrel Hinge Guard, Double Return, Stainless Steel

The Markar HG305 Hinge Guard protects your door from dings and gouges from carts and gurneys, while providing clean lines and aesthetic appearance. All hinge guard products also have fire ratings up to and including 3 hours.

Features:

  • Stainless steel end pins

  • Custom lengths available

  • Fasteners concealed when door is closed

  • Supports weight up to 600 lbs., 4'0" maximum door width

  • Symmetrically templated hole pattern. Handing required for 6'8" and 7'2" and for most optional features listed

  • Exterior barrel diameter .438" (7⁄16")

  • Custom lengths and hole patterns available

  • Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws

  • Handing required for 6'8" and 7'2" and most optional features

  • Tamper-proof security screws available

Certifications:

  • ANSI/SDI 250.13 Certified

  • UL 10C positive pressure

  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies

  • Warnock Hersey listing

  • ANSI/BHMA Standard A156.26
Read more
More Information
Specifications
  • Grade: Grade 1
  • Hinge Material: 304 stainless steel
  • Hinge Mounting Type: Full Mortise
  • Hinge Strength: Standard Weight
  • Handing: Non-handed
  • Fastener: KMPSS
  • Fastener Type: TEKS

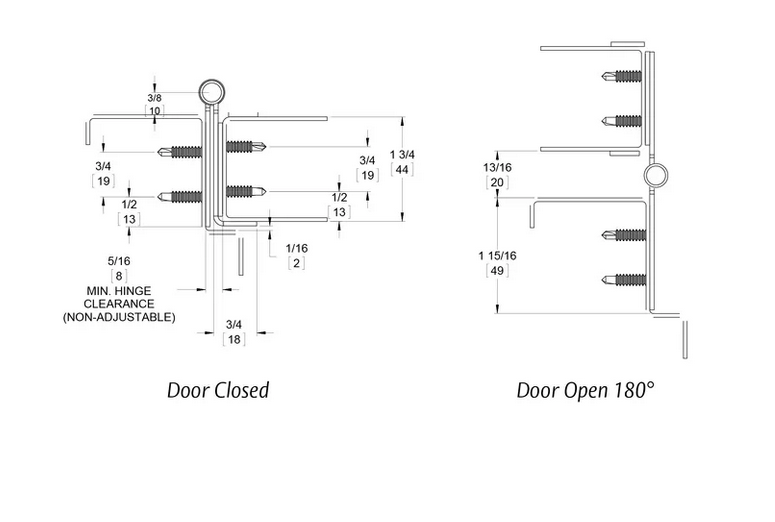

  • Door Thickness: 1 3/4"
  • Maximum Door Width: 4"
  • Hinge Length: 83 1/8" or 95"
  • Maximum Swing: 180°
  • Minimum Hinge Clearance: 5/16"
  • Weight: 2.3lbs. per foot
UPC 722208643833
