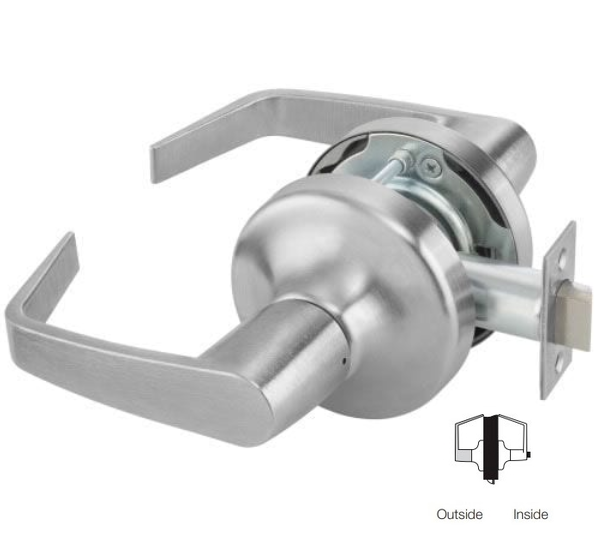

Yale 4703LN Grade 1 Patio or Privacy Lockset

Yale 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

Function:

For exit doors with limited entry
Deadlocking latchbolt
Either lever operates latchbolt unless outside lever is locked by pushbutton inside
Button automatically releases when inside lever is turned or door is closed
Inside lever always active

Features:

Free Wheeling lever mechanism prevents vandalism and reduces maintenance

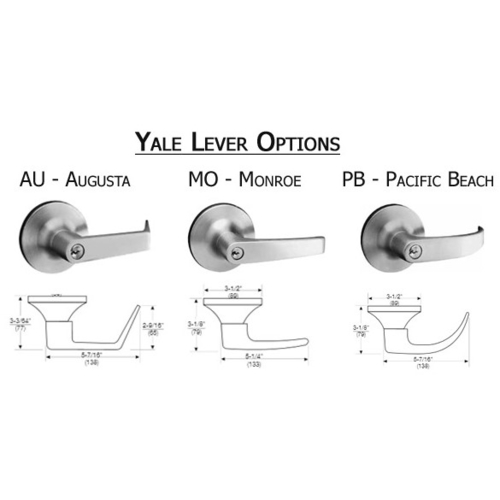

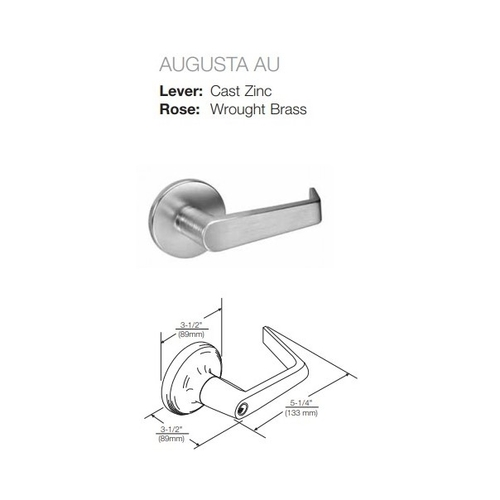

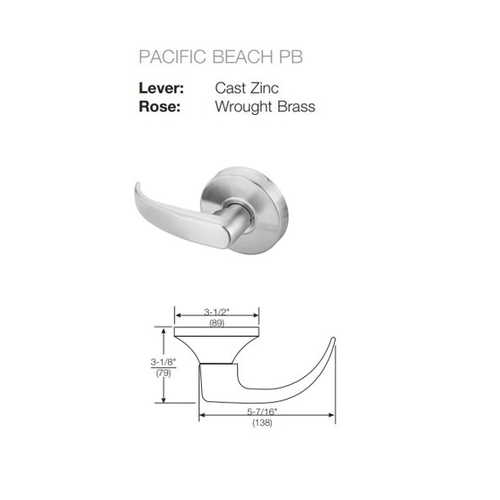

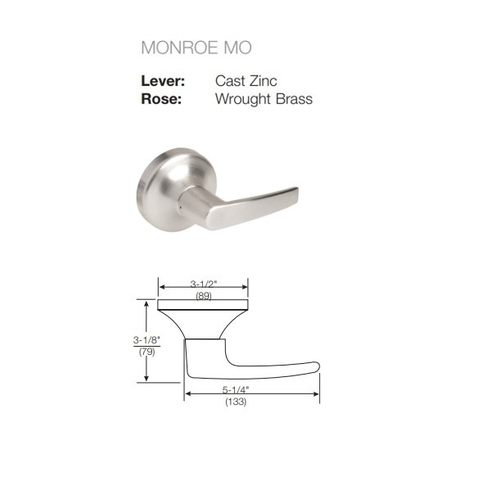

Available in 3 lever designs and 8 architectural finishes
ADA compliant for ease of accessiblity
Non-handed

More Information

Specifications	ANSI/BHMA: A156.2, Series 4000 Grade 1 UL-cUL: UL-cUL fire-rated up to 3 hours Windstorm: 4700LN Certified (refer to local codes) Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated Backset: 2 3/4" standard Latchbolt: 1/2" stainless steel throw standard Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions Door Thickness: Adjustable from 1 3/4" - 2" Fronts: 2 1/4" x 1 1/8" beveled standard; flat fronts available to order Reversibility: Non-handed Strikes: ANSI strike 4 7/8" x 1 1/4" x 1 1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.
UPC	722208643536

Specifications

ANSI/BHMA: A156.2, Series 4000 Grade 1
UL-cUL: UL-cUL fire-rated up to 3 hours
Windstorm: 4700LN Certified (refer to local codes)
Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
Backset: 2 3/4" standard
Latchbolt: 1/2" stainless steel throw standard
Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
Door Thickness: Adjustable from 1 3/4" - 2"
Fronts: 2 1/4" x 1 1/8" beveled standard; flat fronts available to order
Reversibility: Non-handed
Strikes: ANSI strike 4 7/8" x 1 1/4" x 1 1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.
