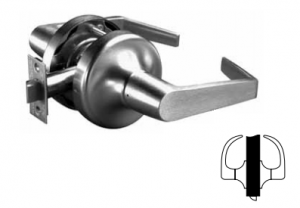

Yale 5309LN Grade 2 Cylindrical Exit Latch- Park Avenue Locks

ACCENTRA (Formerly Yale) 5309LN Grade 2 Cylindrical Exit Latch- ANSI F89

For exit doors with no-entry desired.

Function:

Deadlocking latchbolt.
Outside lever always locked.
Inside lever always active.

ANSI: Certified ANSI/BHMA A156.2, Series 4000 Grade 2.

Fire listings: UL - cUL Fire Label for all door functions up to 3 hours.

Free wheeling lever trim: All locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.

Warranty:The 5300LN Series cylindrical lever lock carries a five-year warranty. Likewise, the 5300LN carries a lifetime warranty against lever sag and lever spring breakage.

More Information

Specifications	Non-Handed : Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation. Door Thickness: Locksets are preassembled for 1-3/8" (35mm) - 1-3/4" (44mm) doors. Preset at factory for 1-3/4" (44mm).Special order available for 2" (51mm) or 2-1/4" (57mm) thick doors please specify door thickness on order. Lock Chassis: Lockset chassis constructed of heavy-gauge steel and cast components, plated to protect against rust and corrosion. Backset: 2-3/4" (70mm) standard. Optional: 2-3/8", 3-3/4" (95mm) and Extensions links up to 6". Latchbolt: Stainless steel with 1/2" throw. Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed. Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). All latches have universal fronts, so they fit flat and beveled door fronts. Strike: Wrought brass, bronze or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Amt of Finishes	10
Amt of Lever Styles	3
UPC	722208640290
Usage	Standard Duty
