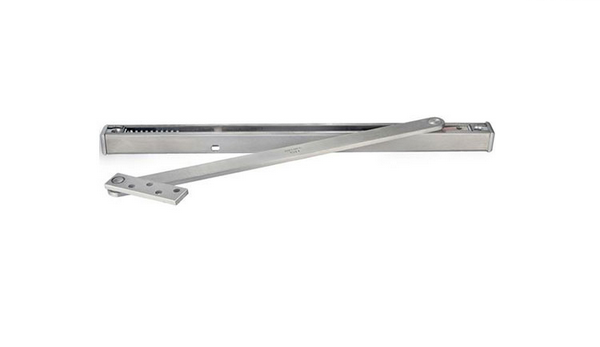

ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function
ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function

ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function

SKU: 1011-US32D

Brand : ABH

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$141.00
$141.00
Finish: US32D - Satin Stainless Steel

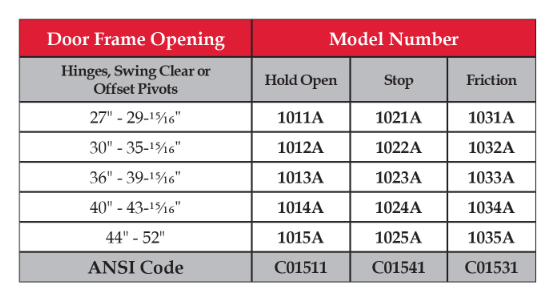

Door Frame Opening: 1011
Subtotal: $141.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function

  • Concealed Mount
  • Heavy Duty
  • Hold Open Function
  • Singe or Double acting doors
  • Non-handed
  • For Interior or exterior use on frequent traffic and heavy weight doors
  • Standard installation from 85° to 110° of opening (5° increments)
  • Shock absorbing spring provides 3° to 5° cushion before dead-stop
  • 1 3/4" minimum door thickness
  • UL Listed as Miscellaneous Fired Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (Stop Function Only)
  • Average weight per unit = 6 lbs.
Read more
Literature
literature
ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function
ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function

ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function

ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function
ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function

ABH 1000 Series Concealed Mount Overhead Stop & Holder, Hold Open Function

$141.00
Finish: US32D - Satin Stainless Steel
Door Frame Opening: 1011
Compare color
  • us32d-satin-stainless-steel
  • us4-satin-brass
  • us10-satin-bronze
  • us10b-oil-rubbed-bronze
  • us3-polished-brass
  • bsp-black-suede-powder-coat
Click on color/pattern to compare, click and drag images to reorder
