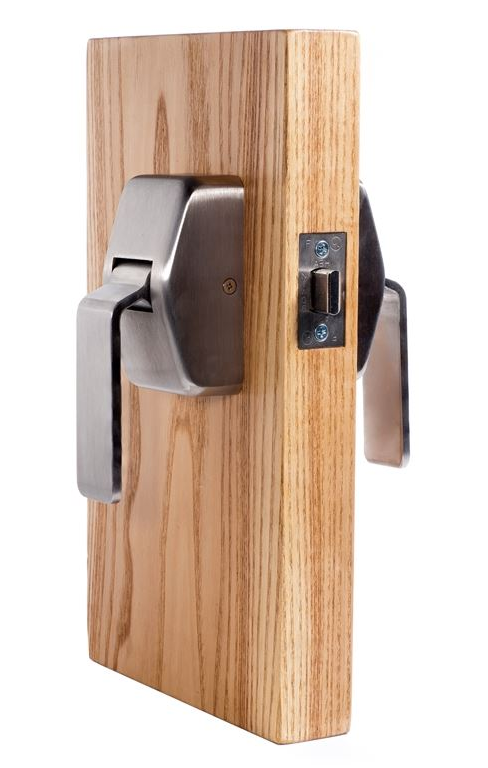

ABH 6000 Series Hospital Push/Pull Latch - Passage Function

ABH 6000 Series Hospital Push/Pull Latch — Passage Function

The ABH 6000 Series Hospital Push/Pull Latch is engineered for commercial and institutional environments where hands-free door operation is essential — particularly hospitals, healthcare facilities, laboratories, and cleanrooms. The short-throw push/pull action allows doors to be opened with an arm, elbow, or hip when hands are occupied or gloved.

The passage function means the latch operates freely from both sides with no locking capability — ideal for corridors, patient rooms, and utility areas requiring unrestricted access.

Key Features

Push/pull operation — opens with a simple push or pull, no grip required
Passage function — latch operates freely from both sides, no locking
ADA compliant — meets accessibility requirements for commercial doors
Non-handed — installs on left- or right-hand doors without modification
Trim mounts vertically or horizontally — handles can be rotated 180° for up or down orientation
Four thru-bolt mounting — maximum stability and resistance to abuse
One continuous spring — smoother operation and extended service life
1/2" latchbolt throw
Designed for 1-3/4" standard door thickness (other thicknesses available)
UL listed for fire doors rated up to 90 minutes, up to 4'0" x 8'0"
Average weight: 5 lbs per unit
