Quick Overview
- Pull-Side Privacy Function; Thumbturn locking on Pull-side, emergency unlock button on Push-side
- 1-3/4" Door Thickness
- Non-handed
- Trims can be mounted vertical or horizontal; handles can be mounted up or down by simply rotating trim 180°.
Secured and trusted checkout with

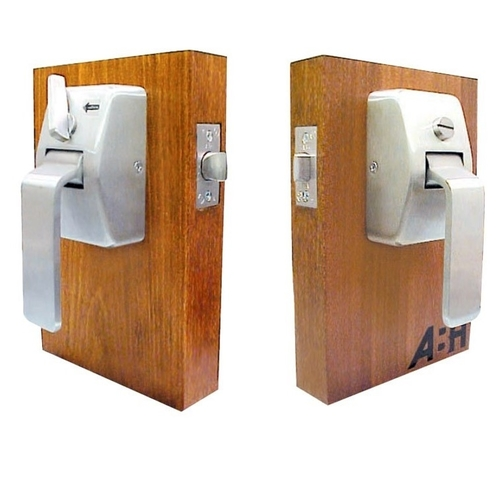

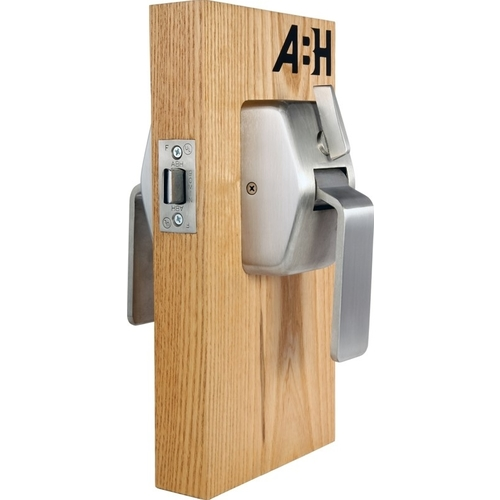

ABH 6400 Privacy Hospital Push/Pull Latch - Pull Side Thumbturn
Privacy hospital latch with locking thumb turn on pull side and override knob on push side designed for patient bathroom applications with emergency access capability.
-
Privacy Function
- Door Is Locked By Moving The Thumb Turn Into The Locked Position & Unlocked By Operating Handle On Thumb Turn Side, Moving Thumb Turn Into The Unlocked Position Or Rotating The Override Knob In Case Of Emergency
- Designed For Patient Bathroom Applications With The Privacy-Actuated Thumb Turn On One Side And The Override Know On The Opposite Side In Case Of Emergency (Locking thumb turn on pull side override knob on push side)
- For 1 3/4" Doors (Specify if Different)
- Non-Handed For Installation And Stocking Ease
- Trim Is Mounted By Four Thru-Bolts For Maximum Stability
- 1/2" Latch Bolt Throw
- One Continuous Spring For Smoother Operation And An Extended Life
- Average Weight Per Unit = 5 Lbs
- UL Listed in U.S.A and Canada for Use on Doors Rated 90 Minutes or
Less, up to 4'0" x 8'0" - Meets ADA Compliance
- Patent #6,293,598 & #6,196,599
- Fasteners: Pin-in-Torx Screws
