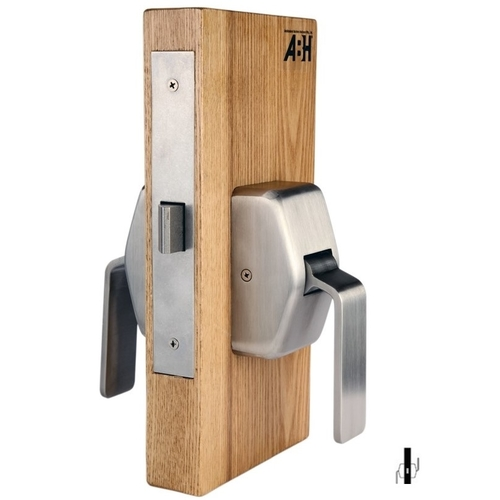

ABH 6610 Passage Mortise Hospital Push/Pull Latch

ABH 6610 Passage Mortise Hospital Push/Pull Latch

Standard mortise lock hospital latch with provided mortise lock body offering enhanced security and functionality for healthcare applications requiring lockable doors.

Function:

• Latch operated by operating either paddle
• Both paddles are always unlocked

Features:

• 2 3/4" backset
• 4 7/8" ASA strike supplied standard
• 1 3/4" standard door thickness
• Meets ADA requirements

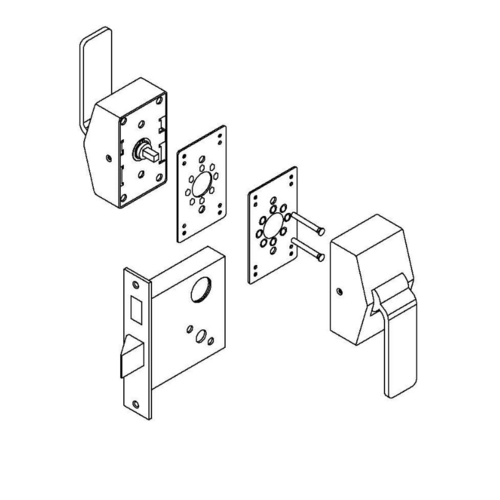

• All mounting hardware goes through mortise lock body prep - no additional prep required
• One continuous spring provides a smoother operation and an extended life for the unit
• Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
• Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
• Handles can be mounted up or down by simply rotating trim 180°
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 3/4" Latch Bolt Throw
• Average weight per unit = 7 lbs
