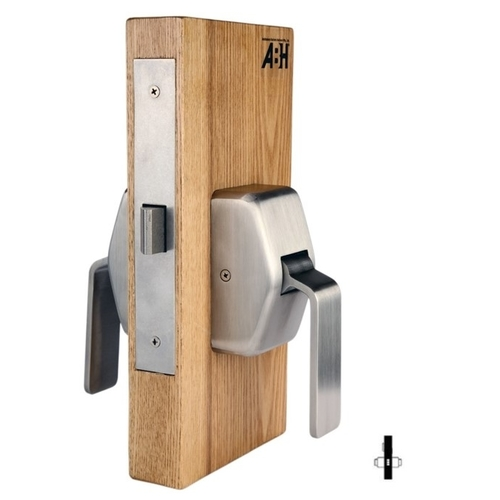

ABH 6632 Privacy Mortise Hospital Push/Pull Latch

Standard mortise lock hospital latch with provided mortise lock body offering enhanced security and functionality for healthcare applications requiring lockable doors.

Function:

Operating either handle only when thumb turn is unlocked
Outside handle locked by turning inside thumb turn, or turning outside emergency key
Outside handle unlocked by turning inside thumb turn, operating inside handle, or turning emergency key
Inside handle is always unlocked

Features:

2 3/4" backset
4 7/8" ASA strike supplied standard
1 3/4" standard door thickness
Meets ADA requirements

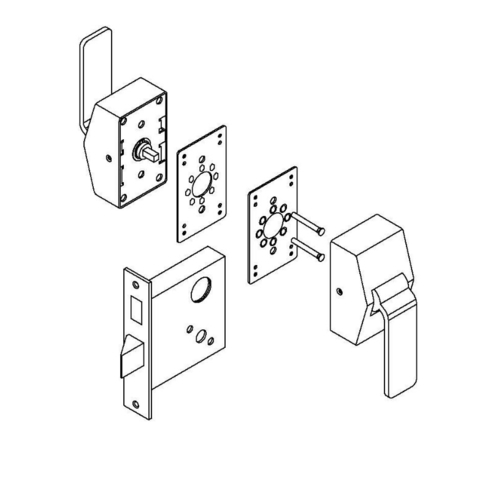

All mounting hardware goes through mortise lock body prep - no additional prep required
One continuous spring provides a smoother operation and an extended life for the unit
Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
- For mortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
Handles can be mounted up or down by simply rotating trim 180°
UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
3/4" Latch Bolt Throw
Average weight per unit = 7 lbs
