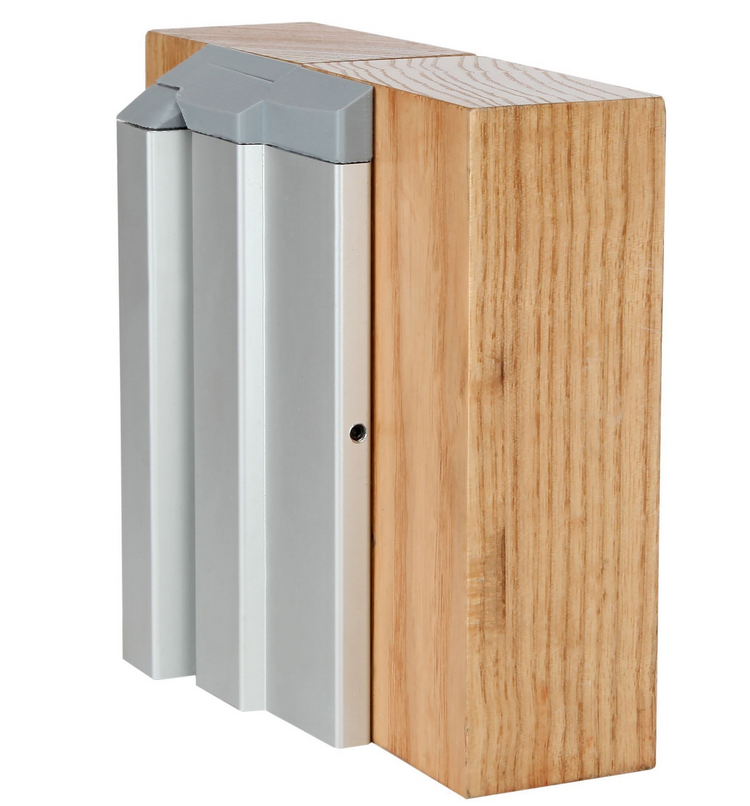

ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear
ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear
ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear
ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear

ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear

SKU: A210HD-C-79

Brand : ABH

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$191.55
$191.55
Finish: US28 - Clear Anodized Aluminum
Length:: 79" for 6' 8" Doors
Subtotal: $191.55
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • No door inset, flush mount
  • Fire-rated up to 90-minutes
  • Supports weights up to 450 lbs

Secured and trusted checkout with

Details

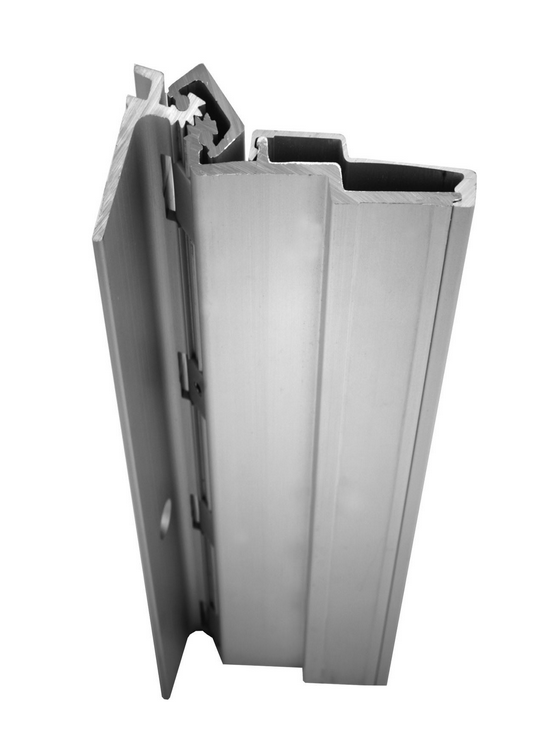

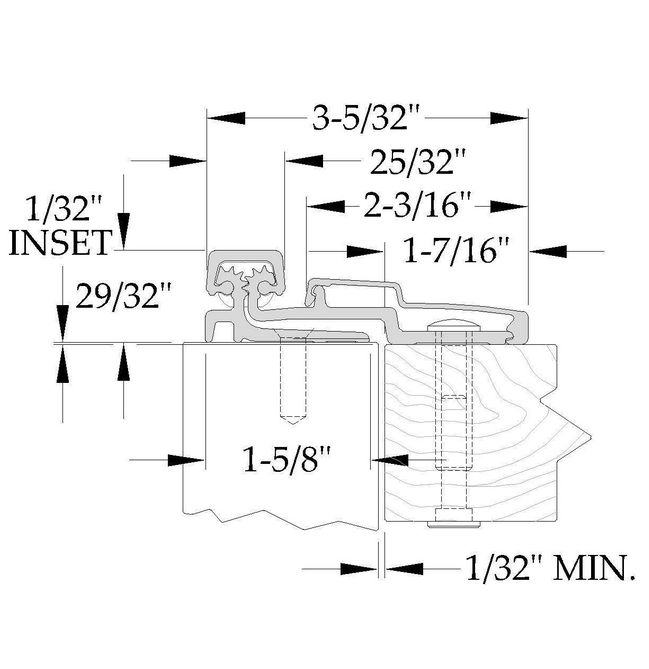

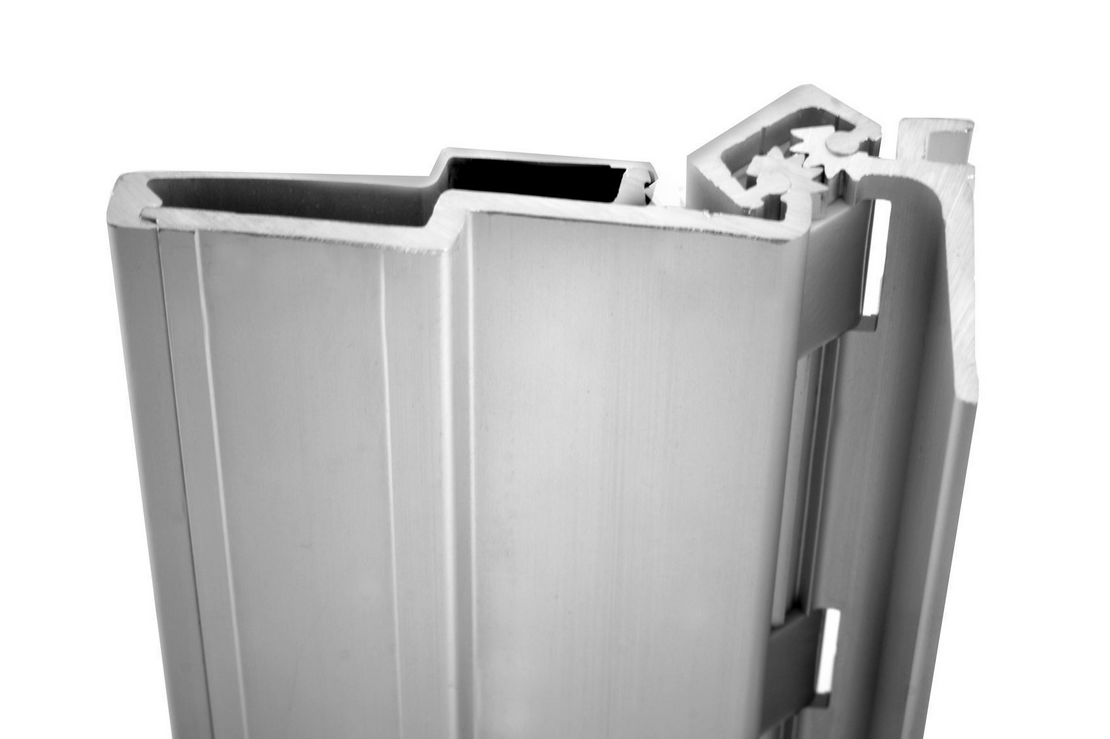

ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear

  • BHMA Grade 1
  • Full Surface, Heavy Duty
  • No Door Inset, Flush Mount
  • Swing Clear application
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Average weight per unit: 14 lbs
  • Fasteners:  12-24 X 3/4" undercut self drilling, thread-forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door
  • Standard Lengths:  79", 83", 85"
Read more
Literature
literature
ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear
ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear

ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear

ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear
ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear
ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear
ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear

ABH A210HD Aluminum Continuous Gear Hinges Full Surface Swing Clear

$191.55
Finish: US28 - Clear Anodized Aluminum
Length:: 79" for 6' 8" Doors
Compare color
  • us28-clear-anodized-aluminum
  • 695-dark-bronze
  • black
Click on color/pattern to compare, click and drag images to reorder
