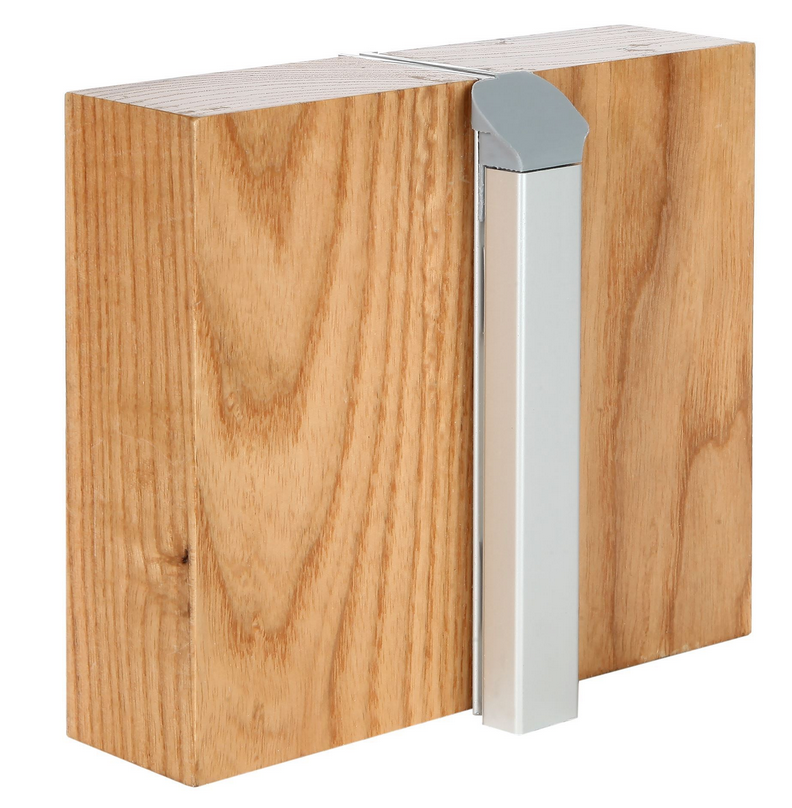

ABH A240HD Heavy Duty Full Mortise Concealed Continuous Geared Hinge, 3/32" Inset
ABH A240HD Heavy Duty Full Mortise Concealed Continuous Geared Hinge, 3/32" Inset
ABH A240HD Heavy Duty Full Mortise Concealed Continuous Geared Hinge, 3/32" Inset
ABH A240HD Heavy Duty Full Mortise Concealed Continuous Geared Hinge, 3/32" Inset

ABH A240HD Heavy Duty Full Mortise Concealed Continuous Geared Hinge, 3/32" Inset

SKU: A240HD-C-79

Brand : ABH

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$151.65
$151.65
Finish: US28 - Clear Anodized Aluminum
Length:: 79" for 6' 8" Doors
Subtotal: $151.65
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • 3/32″ door inset, door edge protection lip
  • Fire-rated up to 90-minutes
  • Supports weights up to 450 lbs

Secured and trusted checkout with

Details

ABH A240HD Heavy Duty Full Mortise Concealed Continuous Geared Hinge, 3/32" Inset

  • BHMA Grade 1
  • Full Concealed, Heavy Duty

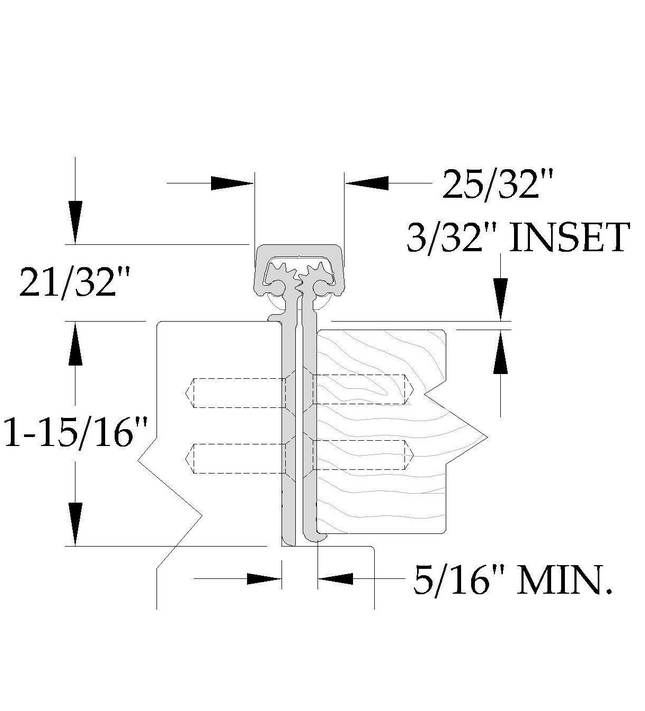

  • 3/32" Door Inset
  • Door edge protection lip
  • For use on 1 3/4" thick doors
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Average weight per unit = 11 lbs
  • Fasteners: 12-24 X 3/4" undercut self drilling, thread forming tek machine screws
  • Standard Lengths: 79", 83", 85"
