SKU: A570HD-C-79

Brand : ABH

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$185.50
$185.50
Finish: US28 - Clear Anodized Aluminum
Length:: 79" for 6'8" Doors
Subtotal: $185.50
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • 1/16″ door inset, for narrow-faced frames
  • Fire-rated up to 90-minutes
  • Supports weights up to 450 lbs

Secured and trusted checkout with

Details

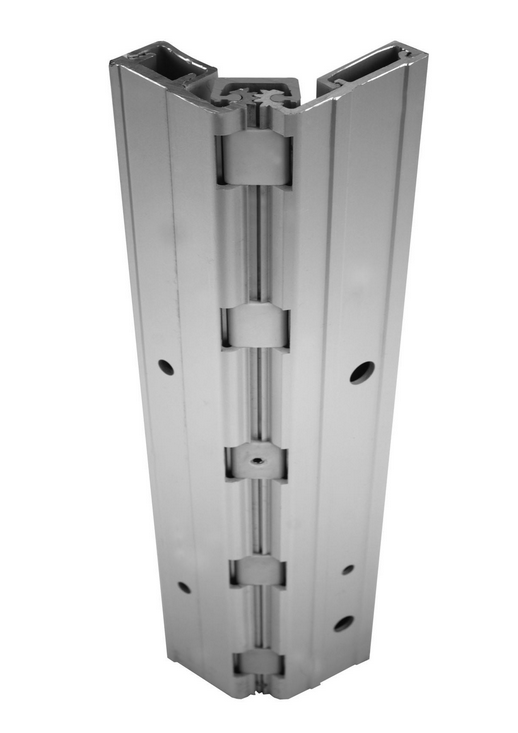

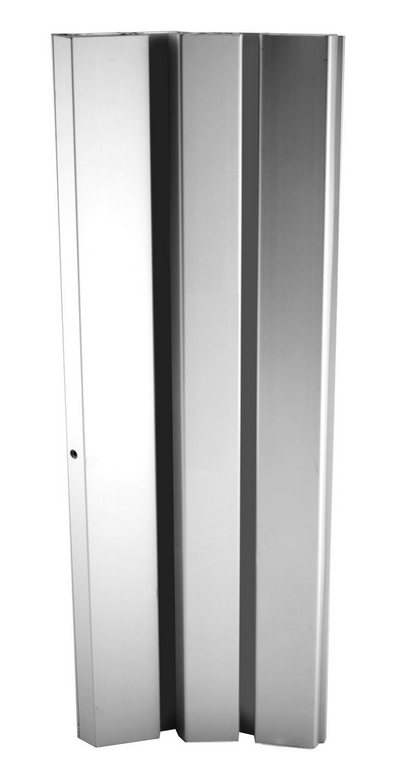

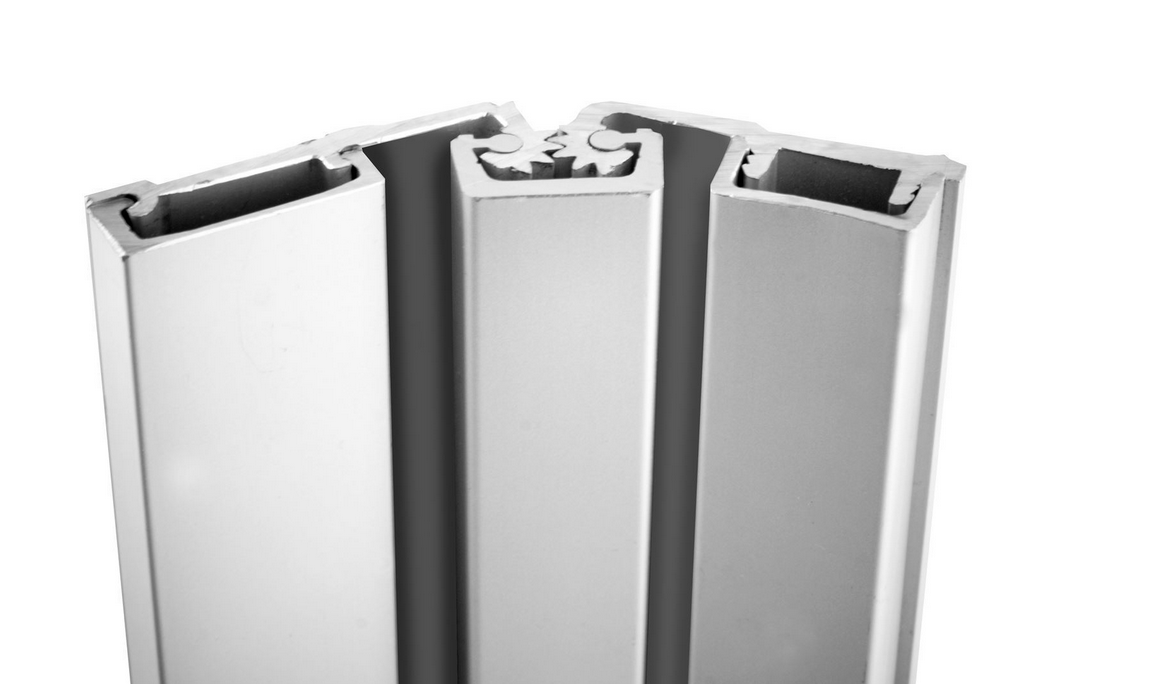

ABH A570HD Heavy Duty Full Surface Continuous Geared Hinge

  • BHMA Grade 1
  • Full Surface, Heavy Duty

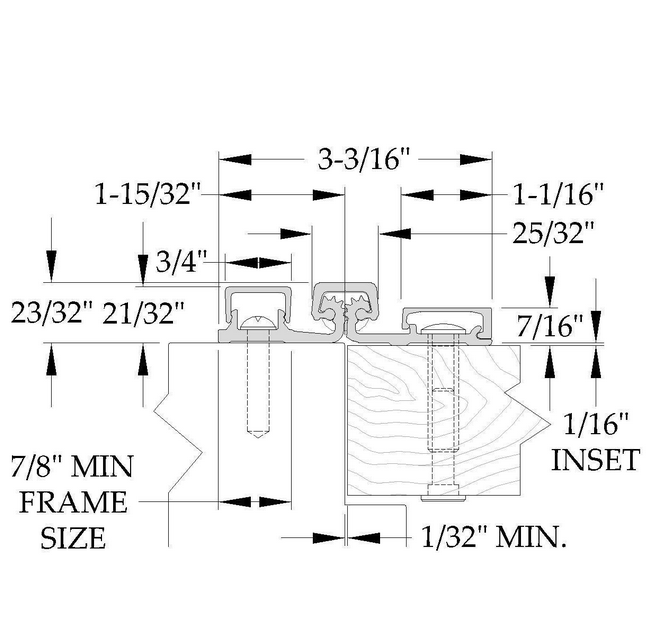

  • 1/16" Door Inset
  • For narrow-faced frames
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Average weight per unit = 11 lbs
  • Fasteners: 12-24 X 1" Phillips Pan Head, Self Drilling, Thread Forming Tek Machine Screw 1/4-20 x 1-1/4" x 3/8 Dia. Sex Bolts and 1/4-20 x 1-1/4" PH. Head Shoulder Bolts for door
  • Standard Lengths:  79", 83", 85"
