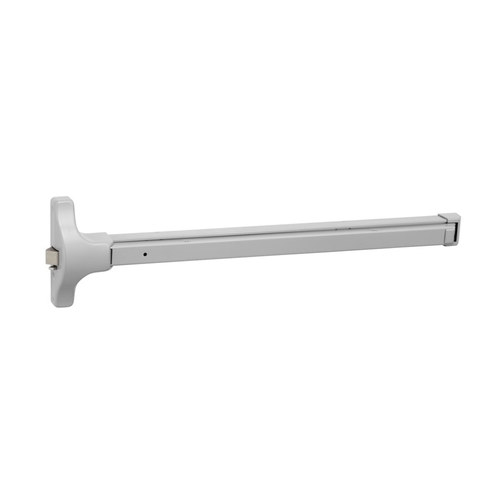

ACCENTRA 2100WS Grade 1 Windstorm Certified Rim Exit Device, 36"

ACCENTRA 2100WS Grade 1 Windstorm Certified Rim Exit Device, 36"

SKU: 2100WS 36 X 689

Brand : ACCENTRA (Formerly Yale)

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$303.45
$303.45
Finish: 689 - Aluminum
Subtotal: $303.45
Questions? Live Chat, or Call 332-255-3200

Quick Overview

Applications:

  • Single swing doors
  • Pairs of doors (mullion required)
  • Metal, wood or composite door materials

Secured and trusted checkout with

Details

ACCENTRA 2100WS Grade 1 Windstorm Certified Rim Exit Device, 36"

The 2100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. The 2100(F) can be paired with a wide variety of trims to meet many applications.

Features:

  • Designed for wide stile doors
  • Non-handed for easy installation
  • Steel interlock “E” bracket maintains door-to-mullion relationship in fire-labeled devices
  • Deadlocking pullman latchbolt positively engages roller strike

Certification/Compliance:

  • UL/cUL Listed: FVSR/FVSR7 - Panic hardware
    GXHX/GXHX7 - Fire exit hardware (F)
    (4' x 8' single, 8' x 8' pairs, 3 hr.)
    ZHEM - Latching hardware
Read more
More Information
Specifications
  • Door Opening Width: 36 for 30" - 36" (76cm - 91cm) doors
  • Door Thickness: 1-3/4" (44mm) standard
  • Minimum Stile Width: 4-1/2" (114mm)
  • Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
  • Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
  • Strike: 757F, 793 optional (double door application, panic only)
  • Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
  • Trims: 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim. See pages 13-21.
  • ANSI/BHMA Certified: A156.3 Type 1, Grade 1
  • Dogging: Hex key dogging supplied standard on panic devices




UPC 722208640451
Literature
literature
ACCENTRA 2100WS Grade 1 Windstorm Certified Rim Exit Device, 36"
ACCENTRA 2100WS Grade 1 Windstorm Certified Rim Exit Device, 36"

ACCENTRA 2100WS Grade 1 Windstorm Certified Rim Exit Device, 36"

ACCENTRA 2100WS Grade 1 Windstorm Certified Rim Exit Device, 36"

ACCENTRA 2100WS Grade 1 Windstorm Certified Rim Exit Device, 36"

$303.45
Finish: 689 - Aluminum
Compare color
  • 689-aluminum
  • 630-satin-stainless-steel
Click on color/pattern to compare, click and drag images to reorder
