ACCENTRA 2110/2110F Grade 1 Surface Vertical Rod Exit Device, Exit Only

SKU: 2110 x 36 x 689

Brand : ACCENTRA (Formerly Yale)

In Stock

Usually Ships Next Day

$384.00; $384.00
Unit price: per

Finish: 689 - Aluminum

Rating: Panic Rated

Panic Rated Fire Rated

Size: 36"

36" 48"

Product variants

Quantity:

Subtotal: $384.00

Questions? Live Chat, Email or Call 332-255-3200

Quick Overview

Applications:

Pairs of doors
Double egress
Metal, wood or composite door materials

Secured and trusted checkout with

Details

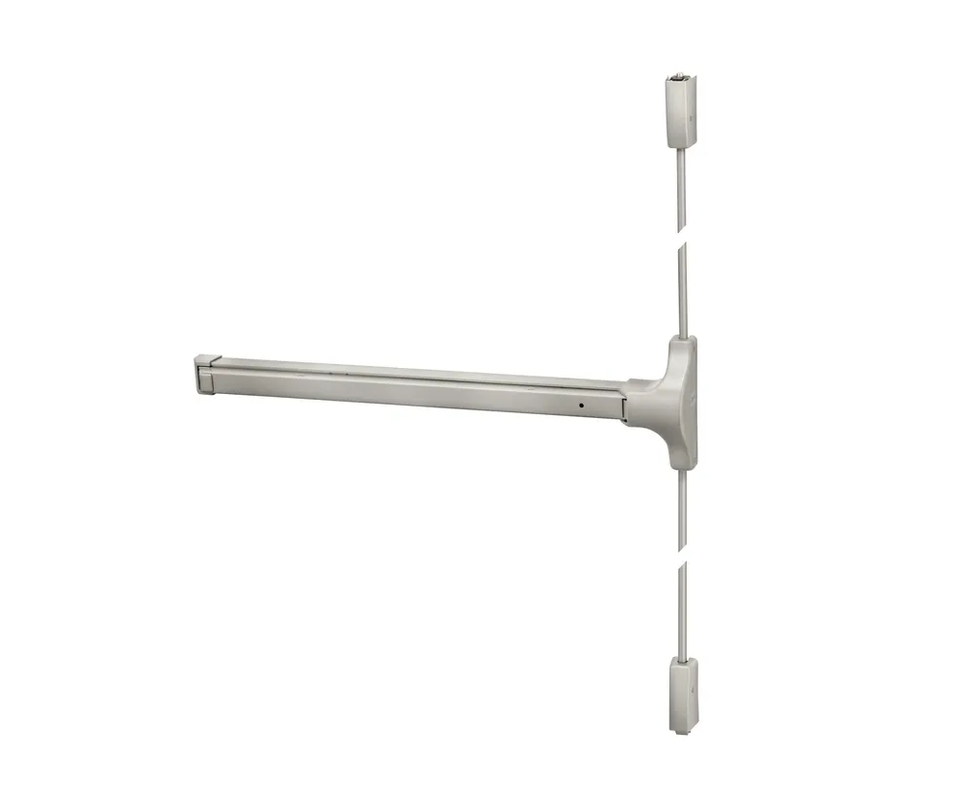

ACCENTRA 2110/2110F Grade 1 Surface Vertical Rod Exit Device, Exit Only

The 2110(F) is a surface vertical rod exit device to be used on metal, wood or composite pairs of doors up to 8' (fire) and 10' (panic) where two-point latching is desired.

Features:

Designed for wide stile doors
Handed, specify hand (field reversible)
Positive action linkage on a deadlocking top pullman bolt
Simultaneous direct pull bottom deadbolt
When unlatched, device keeps both bolts retracted until door is shut

Certification/Compliance:

UL/cUL Listed:

FVSR/FVSR7 - Panic hardware
GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)

ANSI/BHMA Certified: A156.3 Type 2, Grade 1

CompatibleTrims: 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim. See pages 13-21.

More Information

Specifications	Door Opening Width: 36 for 30" - 36" (76cm - 91cm) doors 48 for 42" - 48" (107cm - 122cm) doors Door Opening Height: Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor. Optional heights up to 8' (fire) and 10' (panic) available by using rod extensions. For fire rated openings over 8', see 2170F SVR. Door Thickness: 1 3/4" (44mm) standard Minimum Stile Width: 4 1/2" (114mm) Projection: 2 1/2" (64mm) active, 1 3/4" (44mm) depressed Latchbolt: Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing. Vertical Rods: 1/2" (13mm) O.D. tubular brass, bronze or stainless steel with rod guides Strike: Top: Roller type 791. Bottom: Flush mounted 790. Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware. Trims: 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim. See pages 13-21. ANSI/BHMA Certified: A156.3 Type 2, Grade 1 Dogging: Hex key dogging supplied standard on panic devices
UPC	722208640467

Specifications

Door Opening Width:
- 36 for 30" - 36" (76cm - 91cm) doors
- 48 for 42" - 48" (107cm - 122cm) doors
Door Opening Height: Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor. Optional heights up to 8' (fire) and 10' (panic) available by using rod extensions. For fire rated openings over 8', see 2170F SVR.
Door Thickness: 1 3/4" (44mm) standard
Minimum Stile Width: 4 1/2" (114mm)
Projection: 2 1/2" (64mm) active, 1 3/4" (44mm) depressed
Latchbolt:
- Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching.
- Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.
Vertical Rods: 1/2" (13mm) O.D. tubular brass, bronze or stainless steel with rod guides
Strike: Top: Roller type 791. Bottom: Flush mounted 790.
Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
Trims: 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim. See pages 13-21.
ANSI/BHMA Certified: A156.3 Type 2, Grade 1
Dogging: Hex key dogging supplied standard on panic devices
