ACCENTRA 4702LN Grade 1 Privacy Lock

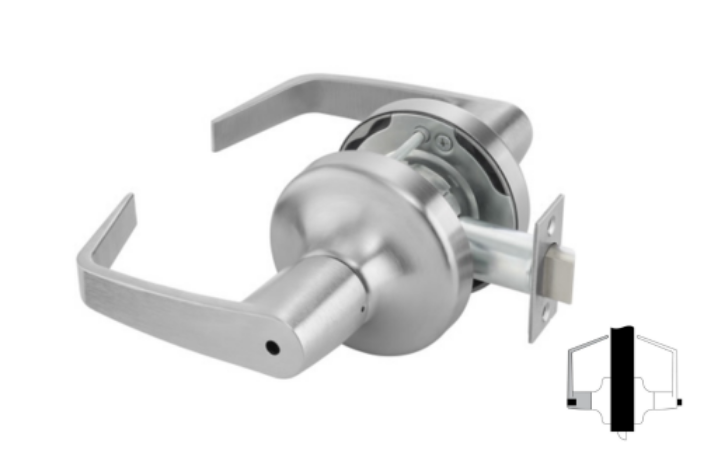

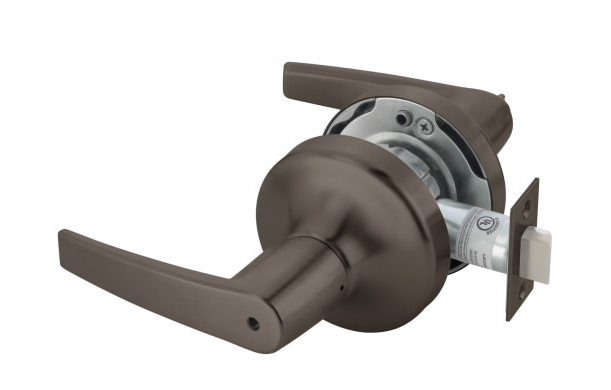

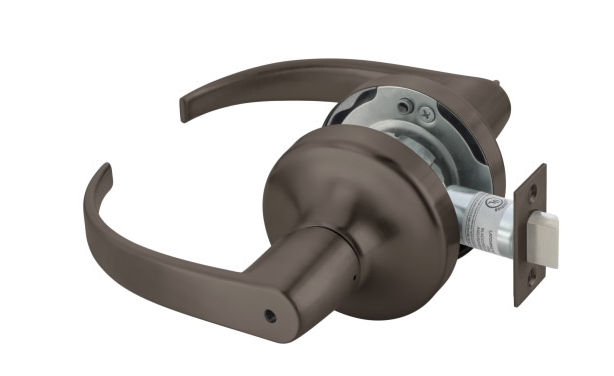

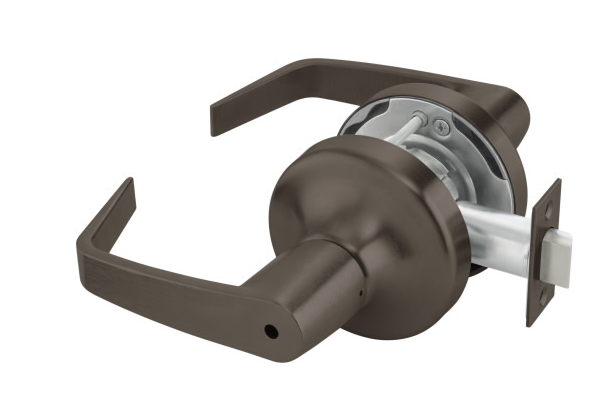

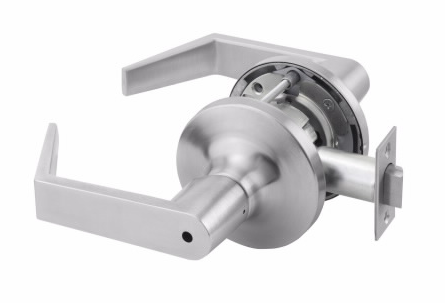

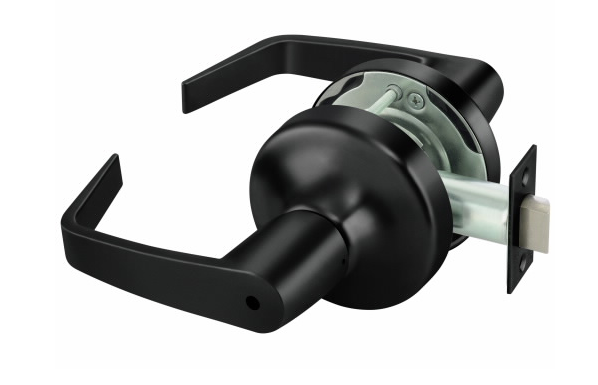

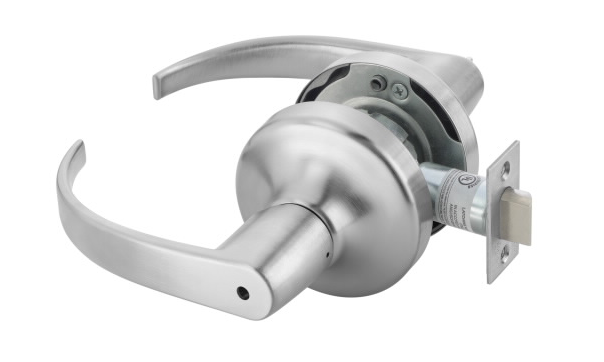

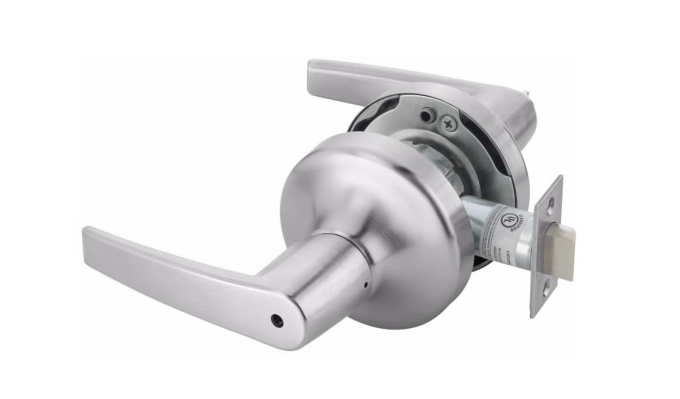

ACCENTRA 4702LN Grade 1 Privacy, Bedroom/Bath Cylindrical Lock

ASSA ABLOY ACCENTRA™ 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

Function:

For lavatory or other privacy doors.
Either lever operates latchbolt unless outside lever is locked by pushbutton inside.*
Button automatically releases when inside lever is turned or door is closed.
Emergency key inserted and turned in hole in outside lever will unlock door from outside. (Emergency key furnished with lockset. P/N 14-5302-1053- 048).
Inside lever always active.

* Lever handles are Free-Wheeling in locked position.

Certifications:

ANSI/SDI 250.13 Certified
ASTM E330 Certified
Florida Building Code Approved FL# 3063
Americans with Disabilities Act (ADA) Compliant
UL-cUL Fire-Rated Up to 3 Hours
ASTM E1996 Certified
ASTM E1886 Certified
NFPA 80 Compliant
TAS 201 Certified
TAS 202 Certified
TAS 203 Certified
ICC A117.1 Compliant
ANSI/BHMA A156.2, Series 4000, Grade 2
ANSI/BHMA A156.41

More Information

Specifications	ANSI/BHMA Code: A156.2 Backset Depth (Standard): 2 3/4" Door Thickness (Standard): 1 3/4"- 2" Handing: Non-handed Latchbolt Throw: 1/2" Strike Type: ANSI Curved Lip UL Listed: Yes ULC Listed: Yes Warranty: 5-year limited warranty
