SKU: 6170 x 36 x 630

Brand : ACCENTRA (Formerly Yale)

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$630.00
$630.00
Rating: Panic Rated
Bottom Rod: With Bottom Rod
Subtotal: $630.00
Questions? Live Chat, or Call 332-255-3200

Quick Overview

Applications:

  • Single swing doors
  • Pairs of doors with removable mullions
  • Wide stile aluminum, metal, wood or composite door materials

Secured and trusted checkout with

Details

ACCENTRA 6170/6170F Surface Vertical Rod Exit Device, 36" Length, Stainless Steel

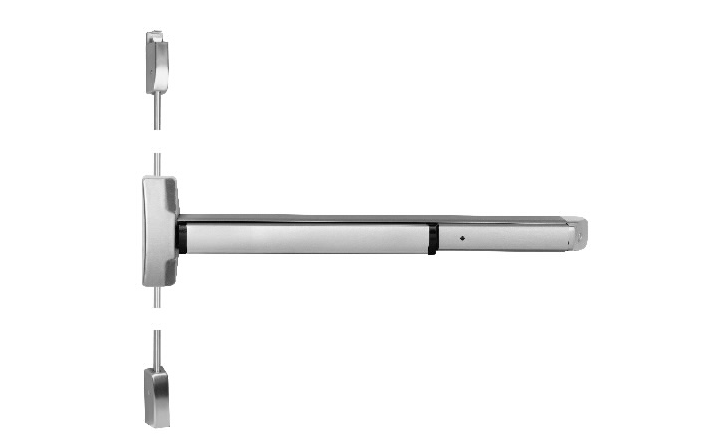

The 6170ED(F) is a surface vertical rod exit device to be used on wide stile and flush doors up to 10' where one- or two-point latching is desired. A Less Bottom Rod (LBR) option is available.

Features:

  • Designed for wide stile and flush doors
  • Handing: field reversible
  • Interlocking top strike and latch mounting plate

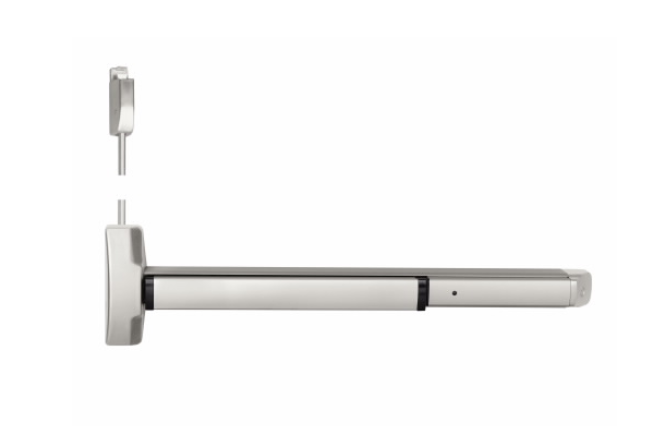

  • Available less bottom rod (LBR option)

Certifications: ANSI/BHMA A156.3 Grade 1

Read more
More Information
Specifications
  • Door Size: 36 for 30" - 36" (76cm - 91cm) doors
  • Door Thickness: 1-3/4" (44mm) standard
  • Minimum Stile Width: 4-1/2" (114mm)
  • Projection: 3-1/4" (83mm) active; 2-1/2" (63.5mm) dogged
  • Latchbolt: Top: 3/4" (19mm) pullman style with auto deadlatching; Bottom 5/8" (16mm) deadbolt, held retracted during door swing
  • Strike(s): Top: 726; Bottom: flush-mounted 790. 794 floor strike optional (threshold openings)
  • Fasteners: Machine screws or wood door screws standard for panic; sex nuts and bolts (SNB) supplied standard for fire
  • Handing: Field reversible
  • ANSI/BHMA: Certified ANSI/BHMA A156.3 Type 2 Grade 1 standards
  • Dogging: Hex key dogging standard on panic
  • Door Height: 7' (213cm) standard
  • Vertical Rods: 1/2" OD brass, bronze or stainless steel with rod guides
