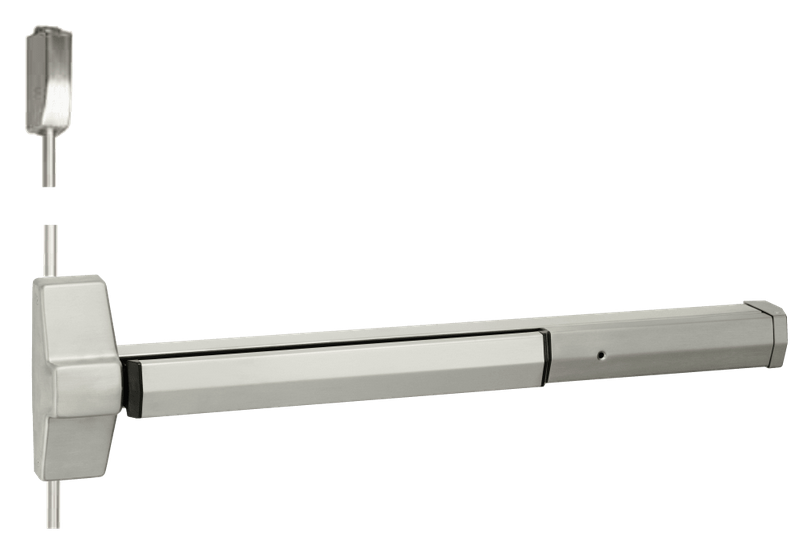

Accentra 7170F90 Fire Rated Surface Vertical Rod Device, 36" x 84", Less Bottom Rod, Satin Stainless Steel

Heat-activated door bolt (thermal pin) - Used when bottom rod is omitted from fire exit devices (LBR).

The 7170(F) is a surface vertical rod exit device to be used on wide stile and flush doors up to 10' where one- or two-point latching is desired.

Features:

  • Designed for wide stile and flush doors
  • Handing: Field Reversible
  • Interlocking top strike and latch mounting plate
  • Less bottom rod (LBR option)
  • ANSI/BHMA: Certified A156.3 Type 2, Grade 1
  • UL/cUL: FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (8' x 10' pairs, 1-1/2 hr.) (8' x 8' pairs, 3 hr.); ZHEM - Latching hardware; ZHLA - Windstorm rated assemblies
Read more
More Information
Specifications
  • Size: 36 for 30" - 36" (76cm - 91cm) doors
  • Door Height: Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor
  • Door Thickness: 1-3/4" (44mm) standard
  • Minimum Stile Width: 4-1/2" (114mm)
  • Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
  • Latchbolt:
    • Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching
    • Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing
  • Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides
  • Strike: Top: 726. Bottom: Flush-mounted 790
  • Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
  • Trims: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.
