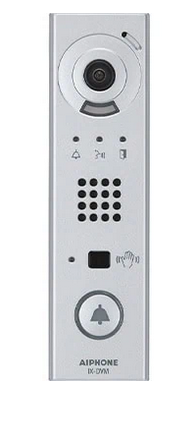

Aiphone IX-DVM Mullion Mount IP Video Door Station, Vandal/Weather Resistant

Mullion Mounted IP Video Door Station With Touchless Sensor

The IX-DVM is a mullion mount, weather-resistant IP Video Intercom, featuring a touchless call sensor and an aluminum die-cast cover. The IX-DVM is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video through ONVIF and RTSP. The IX-DVM is compatible with all IX | IXG series devices.

  • Small form factor for mullion mounting
  • Contactless call sensor
  • SIP compliant
  • 720p HD, wide dynamic range camera
  • White LED for low-light illumination
  • ONVIF Profile S compliant
  • Slot for microSD™ card (not provided by Aiphone)
  • One contact output
  • One trigger input
  • TAA compliant
  • UL certified
Read more
More Information
More Information
x
Specifications
  • Power Source: PoE (IEEE 802.3af class 0)
  • Power Draw: 4.6W max.
  • Camera: 720p HD, wide dynamic range
  • Camera angle: Approx. 170° horizontal
  • Class 1 laser: This product incorporates a Class 1 laser. (transmissions conform with IEC 60825-1:2014)
  • Relay Output Output Method: Form C dry contact (N/O or N/C)
  • Contact Rating: 24V AC, 1A (resistive load) 24V DC, 1A (resistive load)
  • Audio Codec: G.711 (μ-law, A law), G.722
  • Video Codec: H.264/AVC, motion JPEG
  • Volume: 73dB-96dB
  • Port Security: IEEE 802.1X
  • Operating Temp: -40° ~ 140°F (-40° ~ 60°C)
  • Protection: IP54, IK07
  • Dimensions: 1-7/8" W x 1-5/16" L x 6-7/8" H
