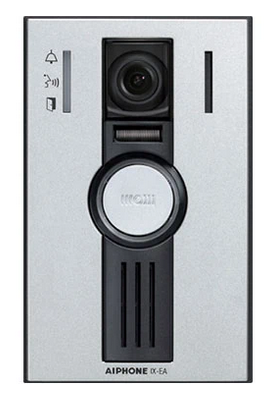

Aiphone IX-EA IP Video Door Station, Surface Mount, Replaces IX-DA

Surface Mount IP Video Door Station

The IX-EA is a one gang surface mount, IP Video Intercom. The IX-EA is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video through ONVIF and RTSP. The IX-EA is compatible with all IX | IXG series devices.

  • SIP compliant
  • 802.3af PoE compliant
  • White LED for low light illumination
  • ONVIF Profile S compliant
  • Camera vertical adjustment +13º, 0º, or -8º (manual)
  • Slot for microSD™ card (not provided by Aiphone)
  • Weather resistant
  • 1 contact output
  • 1 trigger input
  • 600Ω audio output
Read more
More Information
Specifications
  • Power Source:: PoE (IEEE 802.3af class 0)
  • Power Draw: 5.18W max
  • Camera: ⅓" CMOS 1.23 megapixel
  • Min. illumination: 5 lux
  • Audio Codec: G.711 (µ-law, A law), G.722
  • Video Codec: H.264/AVC, Motion JPEG
  • Volume: 73dB-96dB
  • Port Security: IEEE 802.1X
  • Operating Temp: 14° ~ 140°F (-10° ~ 60°C)
  • Dimensions: 6-5⁄16" H x 3-15⁄16" W x 1-3⁄4" D
