Details

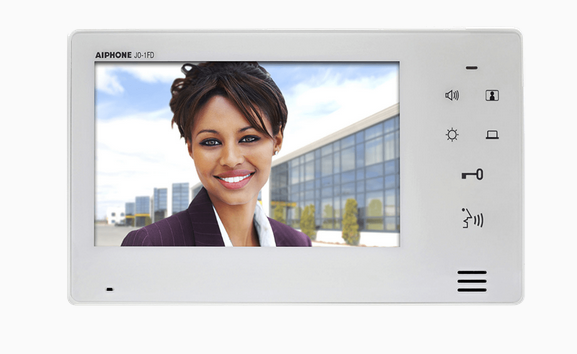

Aiphone JO-1FD 7" LCD Screen w Touch Buttons, Hands-Free Expansion Station For Jo Series

Expansion Answering Station

The JO-1FD is an expansion answering station compatible with the JO-1MDW answering station. One JO-1FD can be added to an existing JO system or purchased with a JO box kit. The JO system supports a single JO-1FD for a maximum of two answering stations, one JO-1MDW and one JO-1FD.

  • Capacitive touch buttons
  • 7” Screen
  • Allows for a second answering station
Read more
More Information
Specifications
  • Communication: Hands-free (VOX) or push-to-talk (simplex)
  • Video Display: 7" LCD screen
  • Door Release: N/O dry contact, 24V AC/DC, 500mA (use RY-18L for larger contact or f N/C dry contact is needed)
  • Mounting: Surface mount directly to wall or desk mount using MCW-S/B
  • Wire Type: 2-cond., low cap, non-shielded - use Aiphone #871802
  • Distance: Door Station to farthest Master Station: 165' (22AWG) 330' (18AWG)
