Aiphone JOS-1VW Mobile-Ready Box Set with Surface-Mount Door Station, 7" touchscreen

Mobile-Ready Box Set with Surface-Mount Door Station

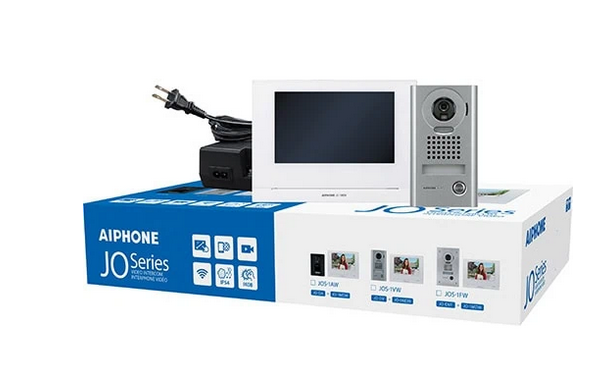

This box kit contains the JO-1MDW an analog answering station with a 7” touchscreen display and WiFi capabilities, allowing mobile apps to be added to a JO system. The JO-1MDW has two normally open dry contacts and built-in memory that can be utilized to record calls, with the option of increasing the storage capacity using a MicroSD card. The box kit also contains the JO-DV a surface-mount zinc die cast analog door station with an IP 54 rating and an IK08 rating. The box kit also contains the PS-1820UL a UL, and CSA listed 18v Class II power supply.

  • Connect up to 8 mobile devices per system
  • Store calls with onboard memory
  • Add a MicroSD card to increase memory to a maximum of 32 GB
  • Watch recorded calls from the on-site master or on the mobile app
  • JO-DV activates white LED light for visibility at night
Read more
More Information
Specifications

Inside Monitor

  • Model: JO-1MDW
  • Video Display: 7" TFT Touchscreen
  • Mounting: Surface wall mount or desk mount with MCW-S stand
  • Internal Call Recording: 10 calls max. @ 10 seconds/call
  • Memory Expansion: micro SDHC card slot, 32GB max.
  • Call Recording with max memory: 1,000 calls max. @ 10 seconds/call
  • Door Release: N/O dry contact, 24V AC/DC, 500mA
  • Communication style: Handsfree or PTT
  • Wireless Frequency: 2.4 GHz
  • Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)

App

  • Model: Intercom App Type B
  • Max per system: 8 devices
  • Door Release: In app slider activates contacts at JO-1MDW
  • Available at: Apple App Store℠ or Google Play™

Video Door Station

  • Model: JO-DV
  • Power Source: Supplied by inside monitor
  • Camera: 1/4 inch color CMOS
  • Mounting: Surface wall mount using a 1 gang electrical box
  • Faceplate Material: Zinc die cast
  • Enclosure Rating: IP54
  • Impact Rating: IK08
  • Communication style: Handsfree
  • Volume: 72.1 dB
  • Operational Tempature: -40°~140° F (-40° ~ 60° C)
  • Wiring to master: 2-cond., low cap, solid, non-shielded
  • Max. Wire distance: 165' (22AWG) 330' (18AWG)

Power Supply

  • Model: PS-1820UL
  • Power Source:AC 100~240V 50/60Hz
  • Power Output: DC 18V 2A
Literature

Power Supply

  • Model: PS-1820UL
  • Power Source:AC 100~240V 50/60Hz
  • Power Output: DC 18V 2A
