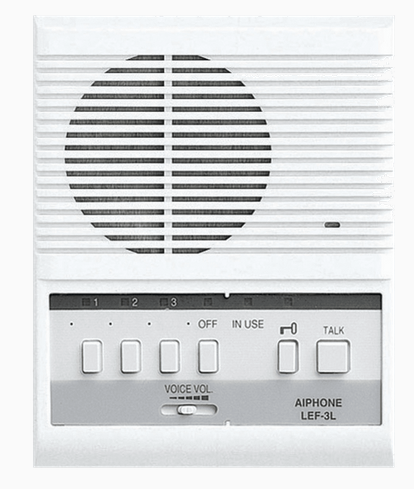

Aiphone LEF-3L 3-Call Surface Mt Master W/Sel Door Release

Aiphone LEF-3L 3-Call Surface Mt Master W/Sel Door Release

SKU: LEF-3L

Brand :

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$360.35
$360.35
Subtotal: $360.35
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

Aiphone LEF-3L 3-Call Surface Mt Master W/Sel Door Release

Analog 3-Channel Master Station with Selective Door Release

The LEF-3L is a selective calling open voice style master station with selective door release capability with a maximum capacity of four stations, including itself.

  • Up to 4 stations
  • Flexible system, mix any 4 master and submaster stations
  • LED and tone to announce incoming calls
  • Push-to-talk to calling master station
  • Hands-free communication at responding station
  • Selective monitoring
  • Selective door release
  • Voice and call tone volume controls
Read more
More Information
Specifications
  • Power Source: 12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C.
  • Output
    • 800mW @ 20Ω (reception)
    • 500mW @ 20Ω (transmission)
  • Talk Channel: 1 talkpath. Occupied LED when in use.
  • Wiring
    • 5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
    • Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun.
  • Relay Contact: RY-PA, normally open or normally closed output, 1A, up to 110V AC or 24V DC.
  • Capacity: Up to 4 stations, intermixable
  • Wiring Distance: 650' w/22AWG; 1600' w/18AWG
  • Dimensions: 7-1/16" H x 5-5/8" W x 2-1/8" D
