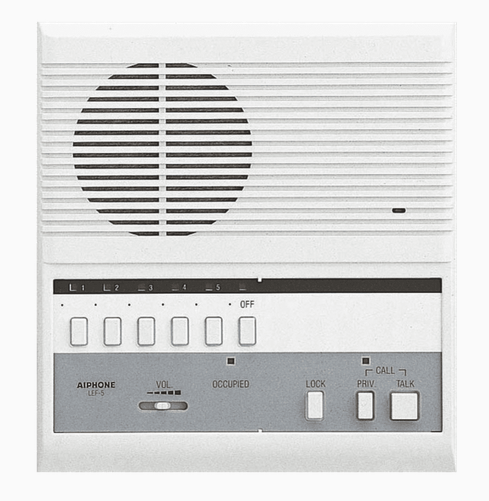

Aiphone LEF-5  5-Call Surface Mt Master W/ Sel Door Release

Analog 5-Channel Master Station

The LEF-5 is a selective calling open voice style master station with a capacity of up to 6 total stations.

  • Supports up to 6 total master, sub, or door stations
  • LED and tone to announce incoming calls
  • Push-to-talk at calling master station
  • Hands-free communication at responding station
  • Large variety of sub and door stations
  • Selective monitoring
  • Privacy feature prevents unauthorized monitoring
  • Voice and call tone volume controls
  • Selective door release
Read more
More Information
Specifications
  • Power Source: 12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C.
  • Output
    • 800mW @ 20Ω (reception)
    • 500mW @ 20Ω (transmission)
  • Communication: Press-to-talk, release-to-listen at master station. Hands-free at responding station.
  • Talk Channel: 1 talkpath. Occupied LED when in use.
  • Wiring
    • 5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
    • Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun.
  • Capacity: Up to 6 stations, intermixable
  • Wiring Distance: 650' w/22AWG; 1600' w/18AWG
  • Operation Temp: 32°~104°F (0°~40°C)
  • Dimensions: 8-1/18" H x 7-1.2" W x 2-3/16" D
