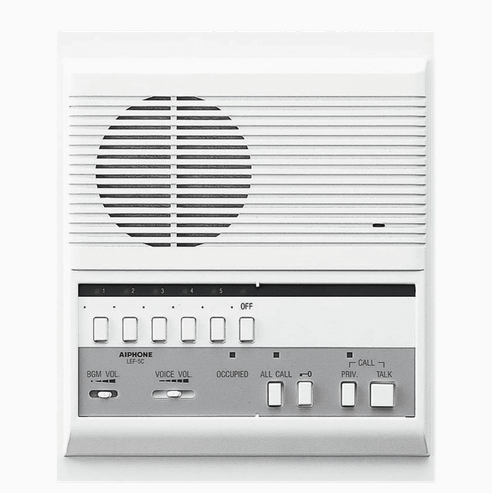

Aiphone LEF-5C 5-Call Semi-Flush Mount Master Station

Aiphone LEF-5C 5-Call Semi-Flush Mount Master Station

SKU: LEF-5C

Brand :

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$402.50
$402.50
Subtotal: $402.50
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

Aiphone LEF-5C 5-Call Semi-Flush Mount Master Station

Analog 5-Channel Master Station with All Call

The LEF-5C is a selective calling open voice style master station with a capacity of up to 6 total stations.

  • Supports up to 6 total master, sub, or door stations
  • LED and tone to announce incoming calls
  • Push-to-talk at calling master station
  • Hands-free communication at responding station
  • Large variety of sub and door stations
  • Selective monitoring
  • Privacy feature prevents unauthorized monitoring
  • Voice and call tone volume controls
  • Selective door release
  • Plays background music (requires additional equipment)
  • All Call button (requires additional equipment)
Read more
More Information
Specifications
  • Power Source: 12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C.
  • Output:
    • 800mW @ 20Ω (reception)
    • 500mW @ 20Ω (transmission)
  • Communication: Press-to-talk, release-to-listen at master station. Hands-free at responding station.
  • Talk Channel
    • 5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
    • Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun.
  • Wiring: Sub Station to farthest Master Station: 650'(22AWG) 1,600(18AWG)
  • Capacity: Up to 6 stations, intermixable
  • Wiring Distance: 650' w/22AWG; 1600' w/18AWG
  • Operation Temp: 32°~104°F (0°~40°C)
  • Dimensions: 9-3/8" H x 7-7/8" W x 1-9/16" D
