Cal-Royal 2200 Series Grade 1 ADA Rim Exit Device

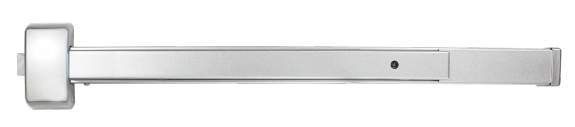

Cal-Royal 2200 Series Grade 1 ADA Rim Exit Device

The Cal-Royal 2200 Series combines ANSI Grade 1 construction with a rim-mounted design for commercial door openings. Its chassis-mounted assembly supports a choice of panic- and fire-rated configurations, while retrofit compatibility with Sargent 12-2828 and 12-2838 Series hardware makes it an option to consider for replacement projects.

ADA Series: 5 lb opening force

The A2200 and AF2200 ADA Series specifications state compliance with the Americans with Disabilities Act (ADA) and a 5 lb opening force. The 5 lb opening-force specification applies to ADA Series devices only. Confirm that the selected device is the ADA Series configuration required for your project; do not assume this specification applies to every 2200 Series device.

Key features

• ANSI standard: A156.3, Grade 1.
• Device type: Rim exit device. Surface vertical rod devices are a separate design within the broader series.
• Construction: Chassis-mounted unit assembly.
• Retrofit compatibility: Sargent 12-2828 and 12-2838 Series. Check the existing door preparation and hardware dimensions before ordering.
• Trim functions: Multiple outside-operation options within the series, with Grade 1 lever and escutcheon trim construction.

Panic and fire-exit ratings

The series specifications list UL panic approval and references to UL10C and UBC 7-2-1997. Fire-exit configurations have a listed 3-hour rating, including an (A) label rating on pairs of doors up to 8 feet by 8 feet swinging in the same or opposite directions. Select the rating appropriate to your door assembly; fire ratings are specific to the applicable configuration.

Trim selection and ordering

Rose trims feature clutch operation, while rigid escutcheon trims cover a 161 cutout. Match the outside trim function to the access requirements of the opening and confirm compatibility with the selected device.

Before ordering, verify the device configuration, size, finish, door preparation, trim, and required rating. ADA Series opening-force specifications and fire-exit ratings describe different product characteristics; confirm both separately for your application.
