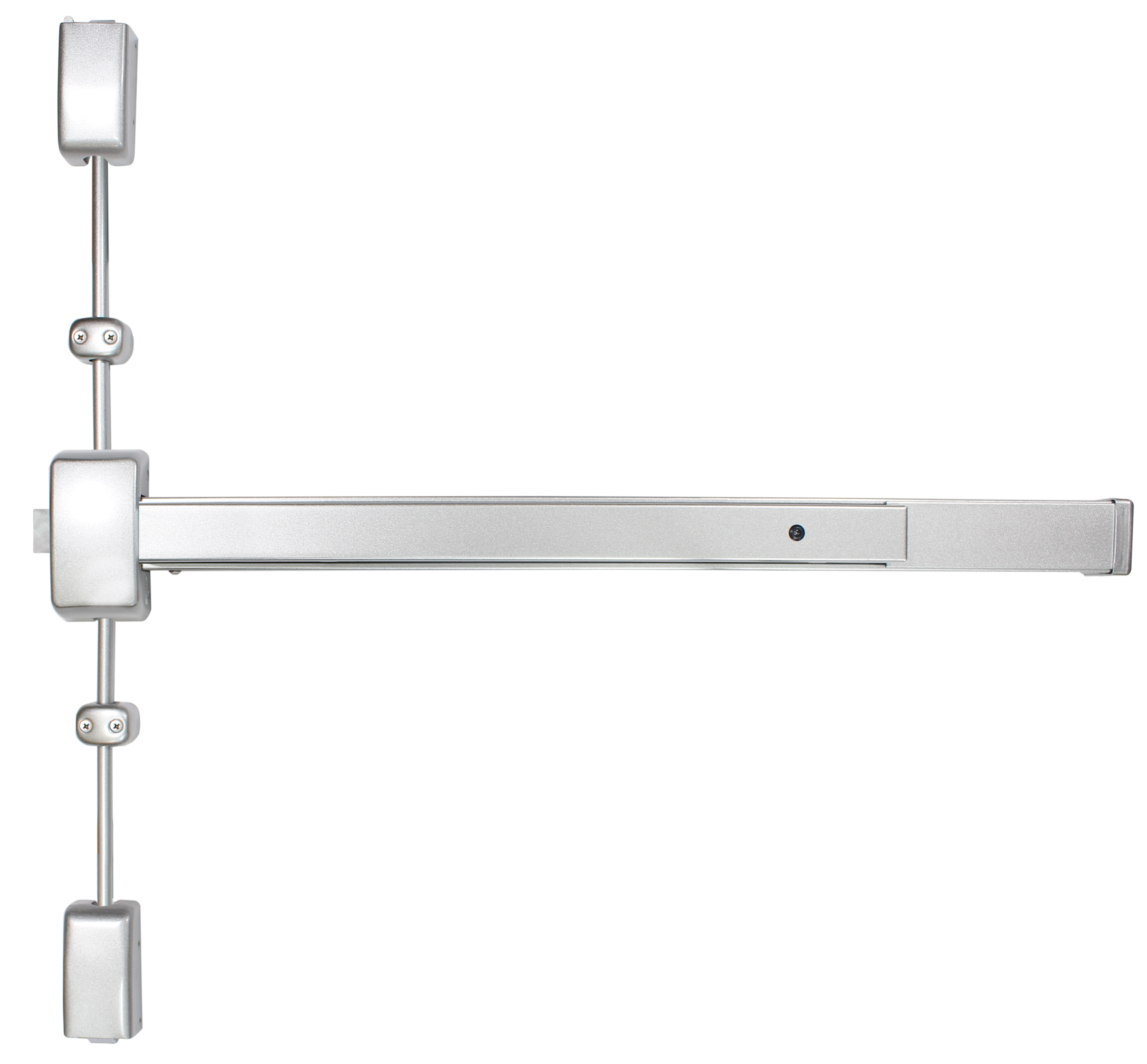

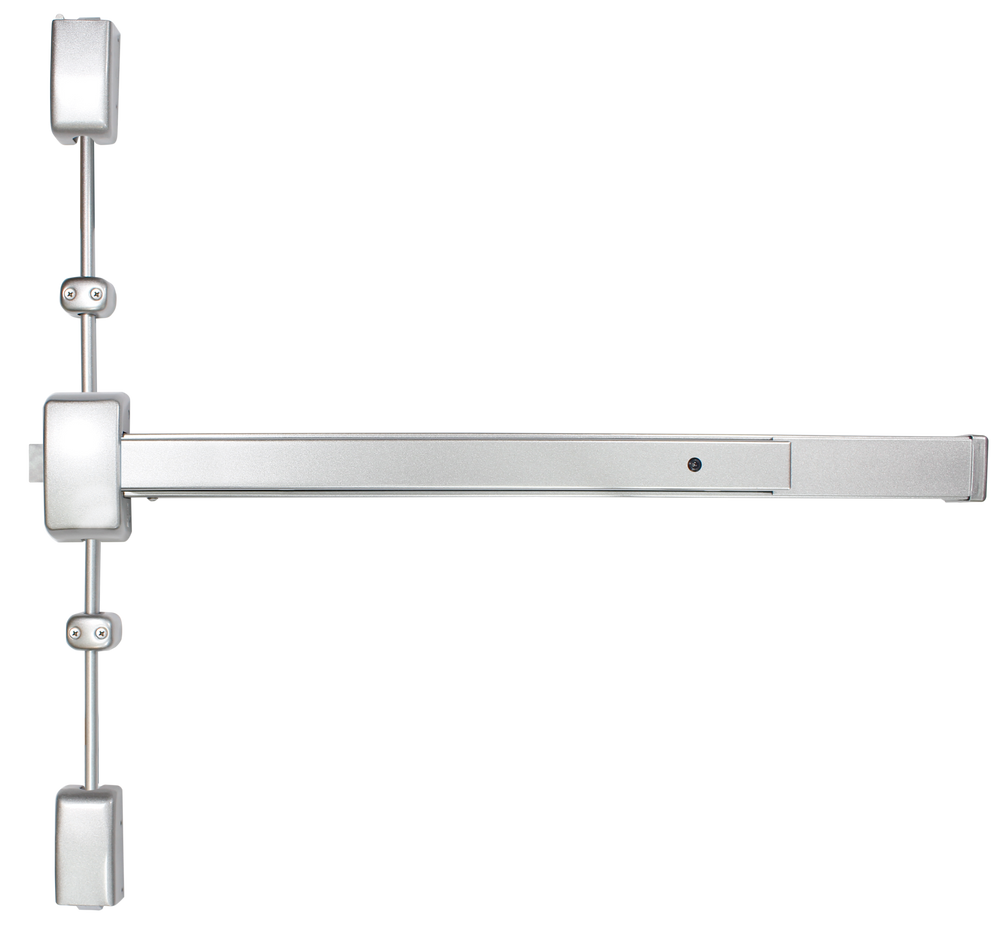

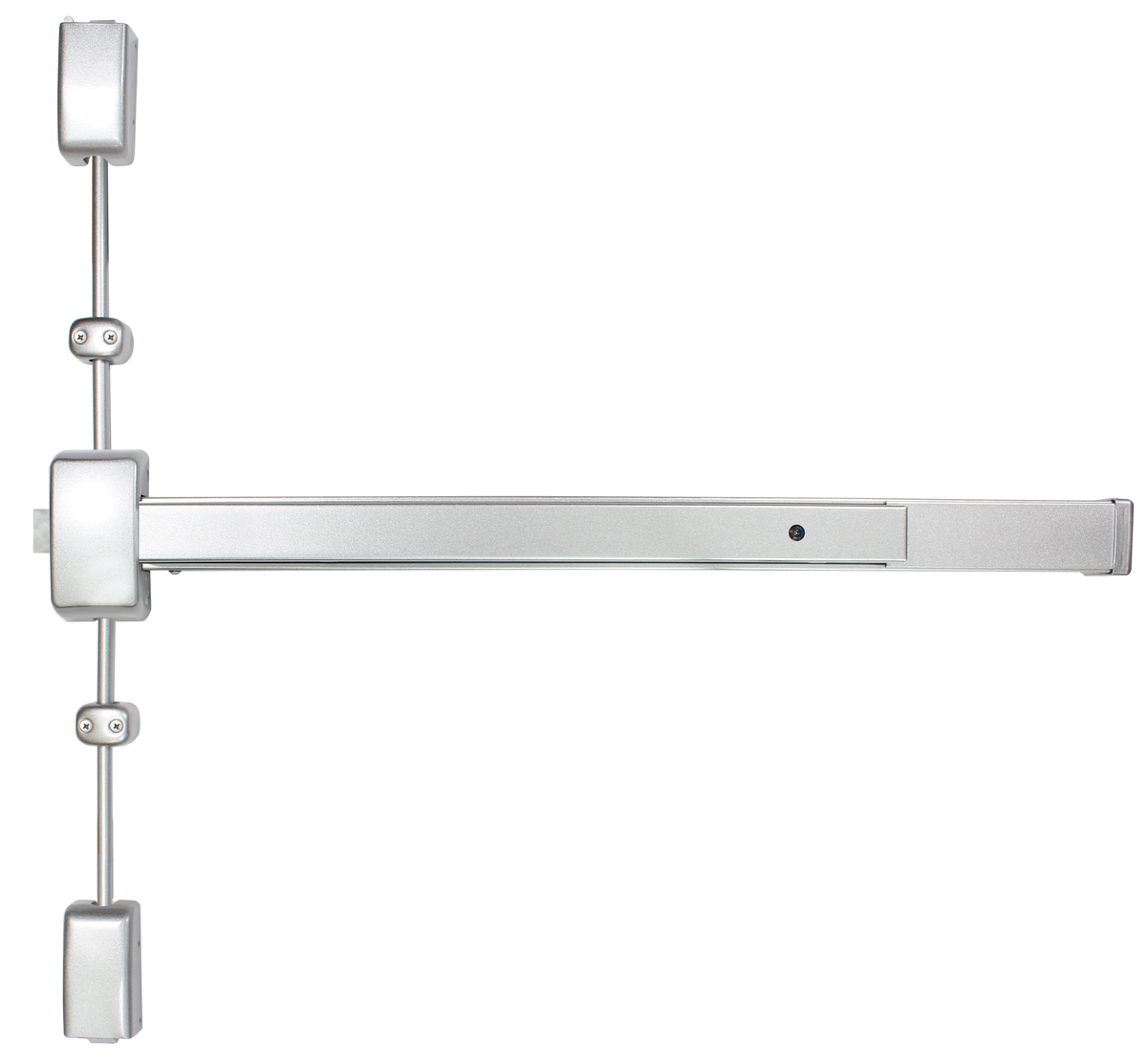

Cal-Royal 2260V Series Grade 1 ADA Surface Vertical Rod Exit Device

Cal-Royal 2260V Series Grade 1 ADA Surface Vertical Rod Exit Device

The Cal-Royal 2260V Series is a Grade 1 surface vertical rod exit device for commercial metal or wood doors. Its ANSI Function 01 exit-only configuration provides exit operation, with compatible outside trim sold separately when exterior access is needed.

For replacement projects, the series lists retrofit compatibility with Sargent 12-2828 and 12-2838 Series hardware. Check the existing door preparation, dimensions, and trim requirements before selecting a replacement.

Construction and operation

• ANSI standard: A156.3, Grade 1.
• Device type: Surface vertical rod exit device, distinct from rim devices in the broader exit hardware range.
• Assembly: Chassis-mounted unit construction.
• Function: ANSI Function 01, exit only; compatible outside trim sold separately.
• Door applications: Metal or wood doors, subject to the selected configuration and opening requirements.

A2260V and AF2260V ADA Series

The existing series specifications identify A2260V and AF2260V as ADA Series devices and state ADA compliance. Confirm the selected device configuration and installation requirements for your project rather than applying that statement to every series option.

Panic and fire-exit ratings

The series specifications list UL panic approval and references to UL10C and UBC 7-2-1997. Fire-exit configurations have a listed 3-hour rating, including an (A) label rating on pairs of doors up to 8 feet by 8 feet swinging in the same or opposite directions. Fire ratings apply to the appropriate fire-exit configuration and door assembly.

Trim selection and ordering

Series trim options include Grade 1 lever and escutcheon construction, clutch operation on rose trims, and rigid escutcheon trims that cover a 161 cutout. Match the outside operation to your access requirements and verify compatibility with this surface vertical rod device.

Confirm the device size, finish, required handing, panic or fire rating, and any alarm requirements before ordering. Series fire-rating limits do not establish the dimensions or included features of every available configuration.
