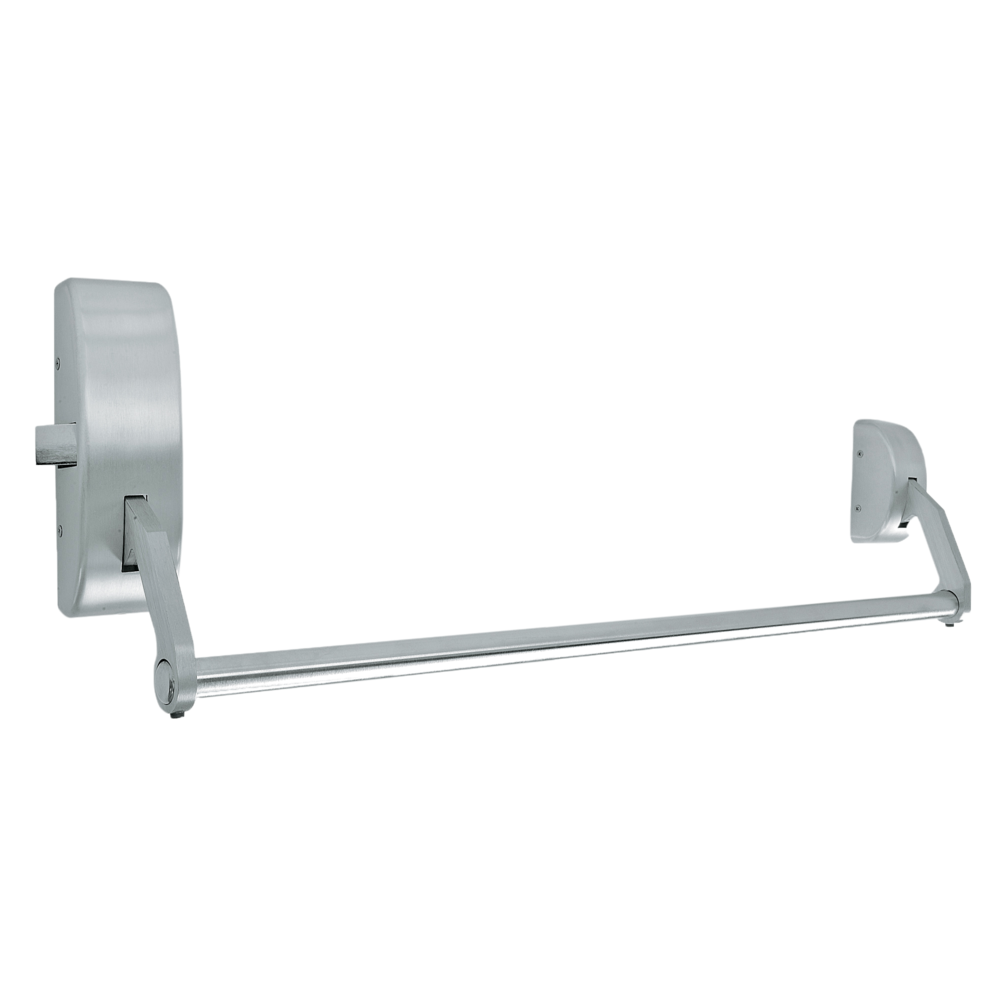

Cal-Royal 4400 Series Grade 2 Rim Exit Device

ANSI A.156.3, GRADE 2 Standard Duty rim type exit device
Lifetime Warranty
UL listed for panic and UL10C, UBC 7-2-1997 code.
Conforms and meets ADA regulations
4 ½” minimum stile width required for single or double door application using standard 440 strike
Pull lever, thumb piece and escutcheon trims available

ESC44-00: ENTRANCE - Rigid Entrance, key locks or unlocks escutcheon trim (Operates as classroom function)
ESC44-30: PASSAGE - Trim always operable and free
ESC44-40: DUMMY - Dummy Escutcheon trim

Thumb Piece Trims:

THP4400: Entrance, key-locks or unlocks thumb piece. Operates as classroom function. 3 1/2" Width x 16" Length.
THP4430: Passage Trim, alwasy operable and free.

Specifications	For Doors - 1 3/4" thick standard. 4 1/2" minimum stile width for single or double door application using standard 440 strike and pull or lever, thumbpiece, and escutcheon trim. Chassis - Non-Ferrous Alloy (Panic Grade) Cover - Non-Ferrous Alloy. Covers stock hollow metal doors with 161 cut out. Mounting - Furnished with wood and machine screws. Available thru-bolts on request. Hand - Handed, Reversible. Specify handing for convenience. Latch Bolt - Stainless Steel ¾" throw Spring - Stainless Steel throughout ANSI Standard - A156.3, Grade 2. Cross Bar - 1" diameter Steel, 0.058" thick for 36" or 48" wide doors Strike - Roller Type Dogging Feature - Allen-type key furnished standard UL and ULC Listed - 4400 Series for Panic. Door Size - 4400EO36 for 36" doors, 4420EO48 for 48" doors
UPC	722208641310

Specifications

For Doors - 1 3/4" thick standard. 4 1/2" minimum stile width for single or double door application using standard 440 strike and pull or lever, thumbpiece, and escutcheon trim.
Chassis - Non-Ferrous Alloy (Panic Grade)
Cover - Non-Ferrous Alloy. Covers stock hollow metal doors with 161 cut out.
Mounting - Furnished with wood and machine screws. Available thru-bolts on request.
Hand - Handed, Reversible. Specify handing for convenience.
Latch Bolt - Stainless Steel ¾" throw
Spring - Stainless Steel throughout
ANSI Standard - A156.3, Grade 2.
Cross Bar - 1" diameter Steel, 0.058" thick for 36" or 48" wide doors
Strike - Roller Type
Dogging Feature - Allen-type key furnished standard
UL and ULC Listed - 4400 Series for Panic.
Door Size - 4400EO36 for 36" doors, 4420EO48 for 48" doors
