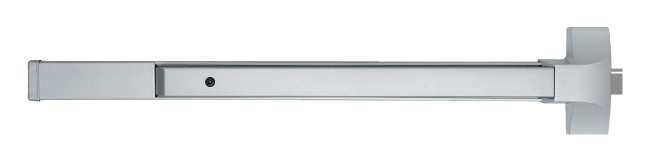

Cal-Royal 5000 Series Grade 1 Rim Exit Device

Cal-Royal 5000 Series Grade 1 Rim Exit Device

The Cal-Royal 5000 Series is a heavy-duty Grade 1 rim exit device for commercial door openings. Its non-handed design simplifies installation by removing the need to select a left- or right-handed device, while chassis-mounted unit construction provides a practical assembly for your door hardware project.

Choose from the listed 36-inch and 48-inch sizes, Aluminum and US32D finish options, and panic- or fire-rated configurations. Match the selected configuration to the opening and required trim before ordering.

Construction and installation

• ANSI standard: A156.3, Grade 1 heavy-duty rim exit device.
• Handing: Non-handed for easier installation.
• Assembly: Chassis-mounted unit construction.
• Trim options: Standard functions are available within the series. Lever and knob trims offer an optional clutch freewheeling mechanism.
• Door preparation: Trim rose covers a 161 cutout.

Panic and fire-exit configurations

The series specifications list UL panic approval and references to UL10C and UBC 7-2-1997. Fire-exit configurations have a listed 3-hour rating, including an (A) label rating on pairs of doors up to 8 feet by 8 feet swinging in the same or opposite directions. The fire rating applies to the appropriate fire-exit configuration, not every 5000 Series option.

Before you order

Confirm the device size, finish, door preparation, and required panic or fire rating. Select compatible outside trim with the function your opening needs, and confirm whether the optional clutch mechanism is required.
