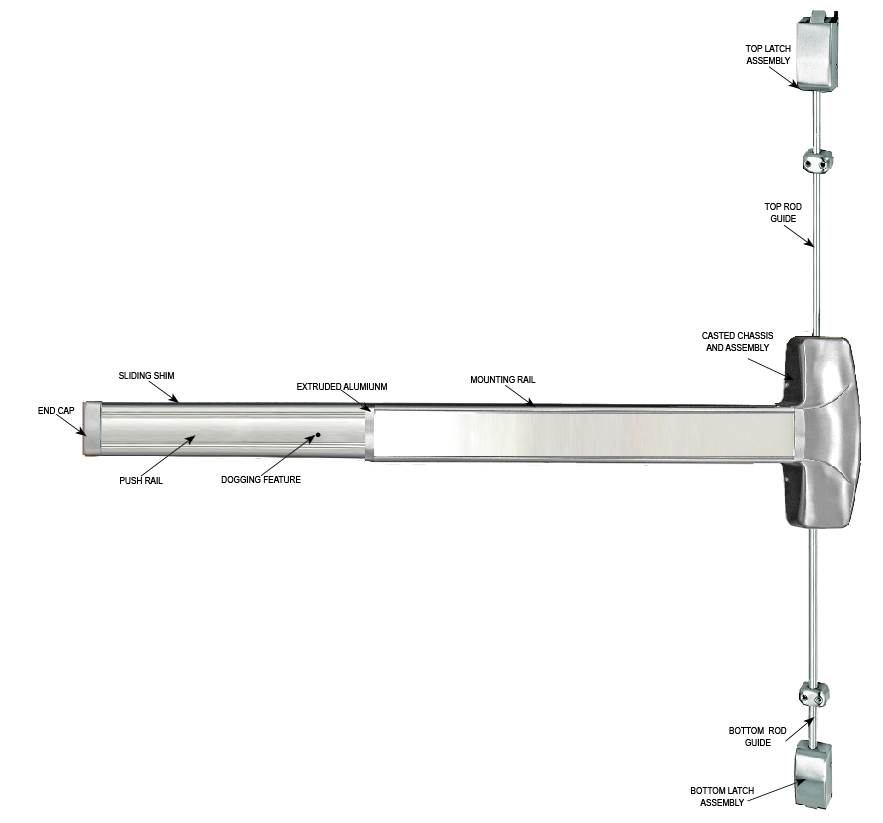

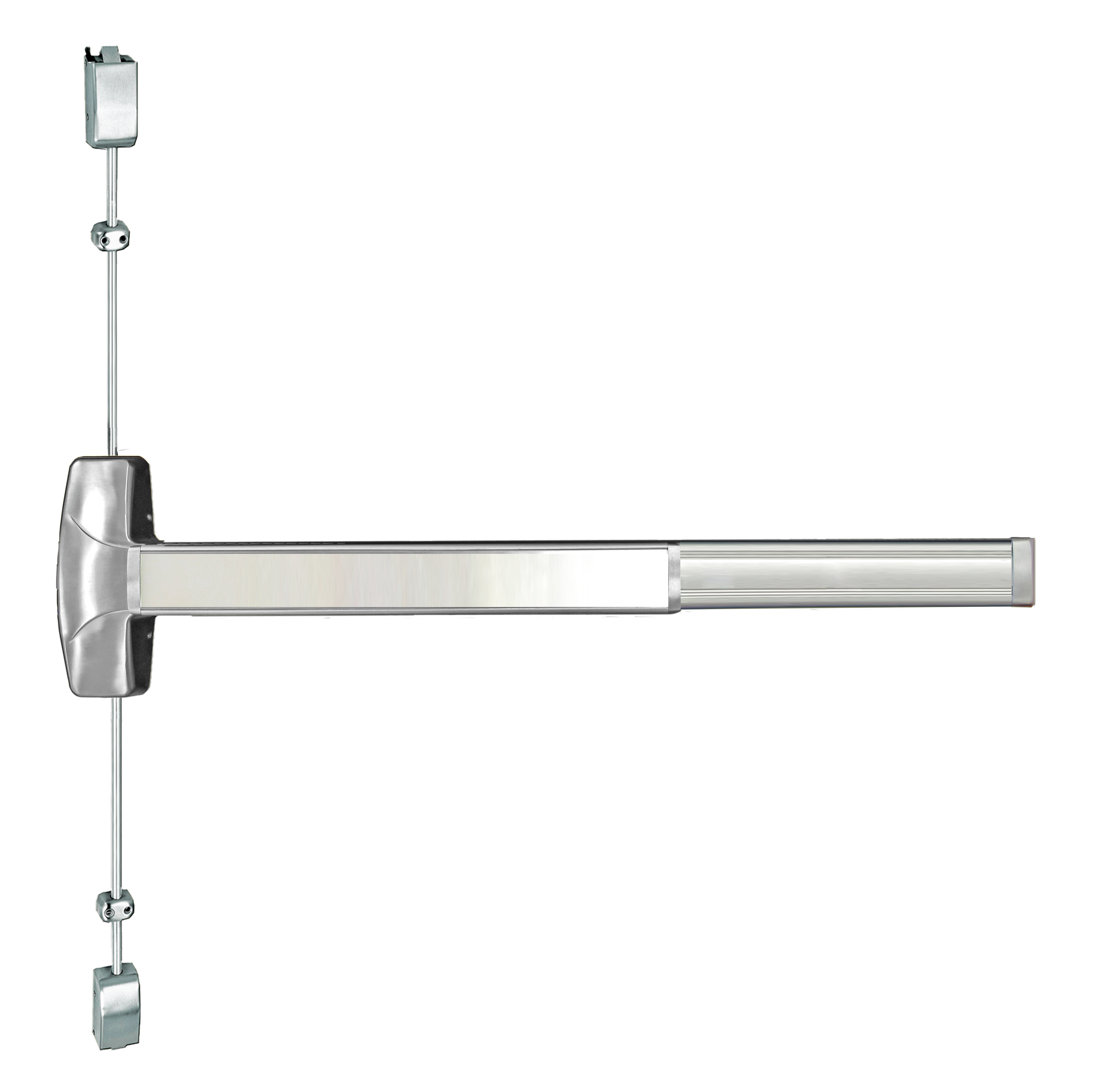

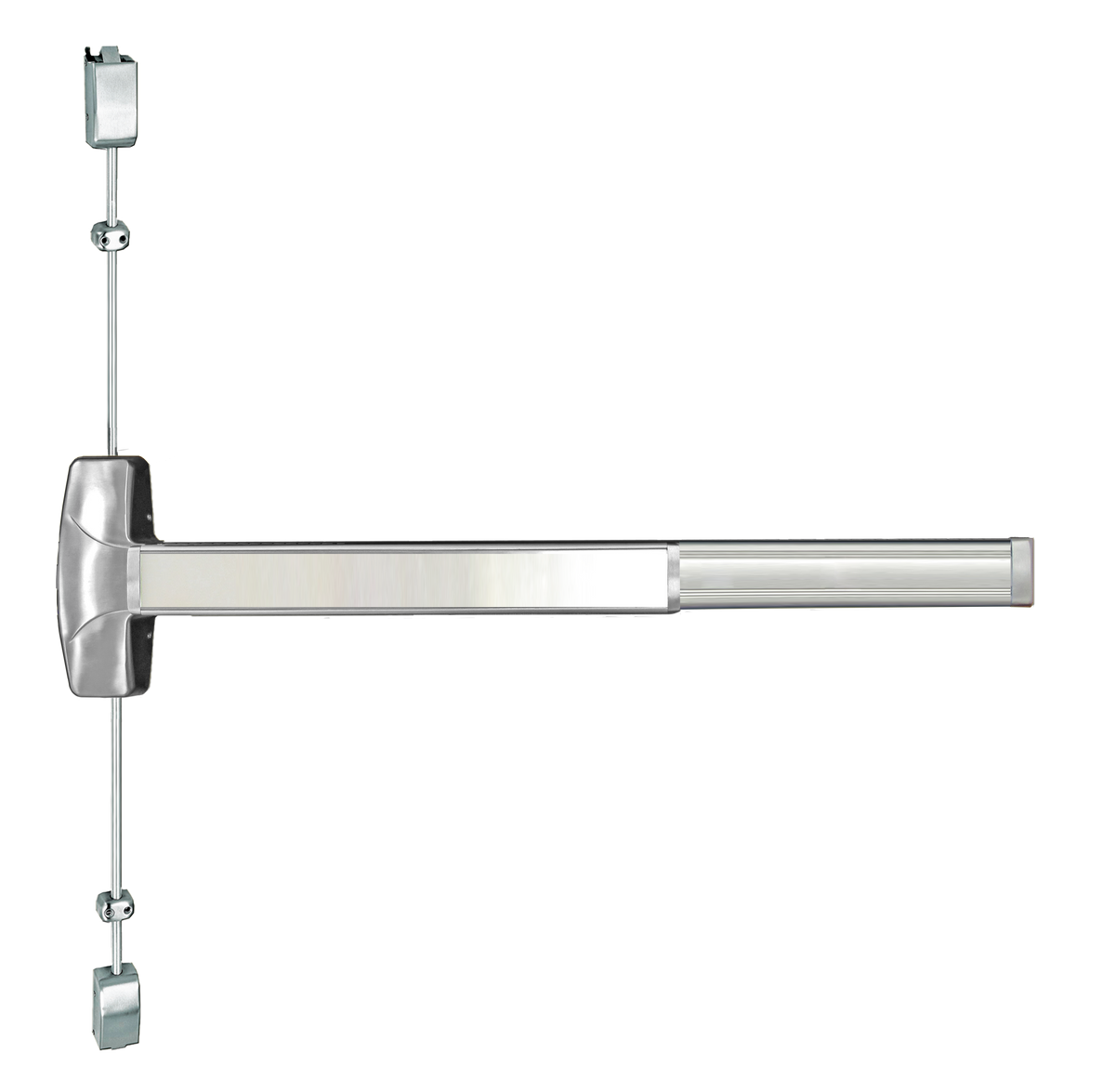

Cal-Royal 7760V Series Grade 1 Surface Vertical Rod Exit Device

A7760V & AF7760V ADA SERIES

ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
Trims are thru bolted for additional security.
Conforms & Meets ADA Regulations.
Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
UL Listed for Fire Exit Hardware. 3 hours.
(A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
Uncompromising security and safety in single and double fire exit doors.
Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch on rose trims. Escutcheon trims are rigid and cover 161 cut out.

Specifications	For Doors - 1 ¾” thick standard optional 2 ¼” thick. 3 ¾” minimum stile width required for single door application. 3 ½” minimum stile width required for double door application. Lever, thumbpiece and escutcheon trims available. 2 ¾” backset Top Chassis - Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade) Cover - Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out Mounting - Furnished with wood and machine screws. Thru-bolts are included and standard packaging on fire-rated devices End Cap - Brass, Bronze or Stainless Steel construction Alarm - Available. Prefix NALRM before MODEL # Hand - Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience Latch Bolt & Spring - Stainless Steel Spring - Stainless Steel throughout ANSI Standard - A156.3, Grade 1 Rail Assembly - Heavy gauge extruded aluminum body with Stainless Steel push pad Strike - See strike page Dogging Feature - Allen-type key furnished standard on non-fire labeled devices UL and ULC Listed - A7760V Series for panic. AF7760V Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
UPC	722208641204

Specifications

For Doors - 1 ¾” thick standard optional 2 ¼” thick. 3 ¾” minimum stile width required for single door application. 3 ½” minimum stile width required for double door application. Lever, thumbpiece and escutcheon trims available. 2 ¾” backset
Top Chassis - Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade)
Cover - Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out
Mounting - Furnished with wood and machine screws. Thru-bolts are included and standard packaging on fire-rated devices
End Cap - Brass, Bronze or Stainless Steel construction
Alarm - Available. Prefix NALRM before MODEL #
Hand - Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience
Latch Bolt & Spring - Stainless Steel
Spring - Stainless Steel throughout
ANSI Standard - A156.3, Grade 1
Rail Assembly - Heavy gauge extruded aluminum body with Stainless Steel push pad
Strike - See strike page
Dogging Feature - Allen-type key furnished standard on non-fire labeled devices
UL and ULC Listed - A7760V Series for panic. AF7760V Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
