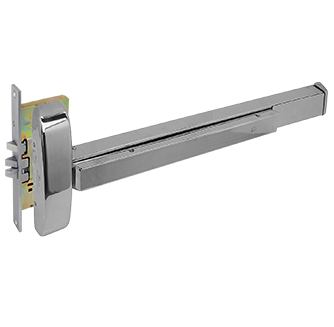

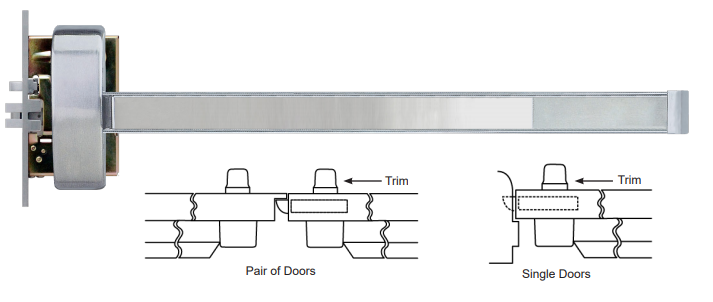

Cal-Royal N-MR9800 Series Mortise Rim Exit Device

ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
Rail assemblies and end caps are made of brass, bronze, or stainless steel. Rail travels in direction of the door swing.
Trims are thru bolted for additional security.
Conforms & Meets ADA Regulations. (ADA products only)
UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
UL Listed for Fire Exit Hardware. 3 hours.
Uncompromising security and safety in single and double fire exit doors.
Chassis mounted unit construction. Handed and Non-Reversible.
Use with MRESC Exit Device Trim

Specifications

For Doors - Wood or Metal. 1 ¾” minimum thickness. 4 ½” minimum stile width
Chassis - Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade)
Chassis Cover - Non-Ferrous plated material
Mounting - Furnished standard with wood and machine screws.
End Cap - Brass, Bronze, or Stainless Steel construction
Strike - Standard ANSI Strike
Dogging Feature - Cylinder dogging available for non-rated applications
UL and ULC Listed - FMR9800 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
