Cal-Royal Challenger SG Series, Standard Duty Cylindrical Leverset

Details

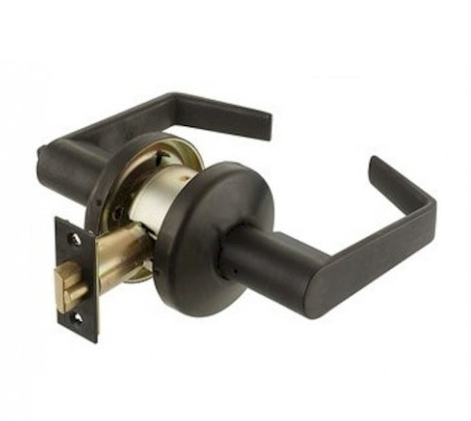

Cal-Royal SG Challenger Standard Duty Cylindrical Leverset

For offices, schools, hospitals, apartments, hotel/motel and other public buildings.

BHMA Certified Lifetime Warranty, GRADE 2
Conforms with ANSI A 156.2 Series 4000, Standard Duty, Barrier Free,
UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
Meets the Buy American Act

Functions:

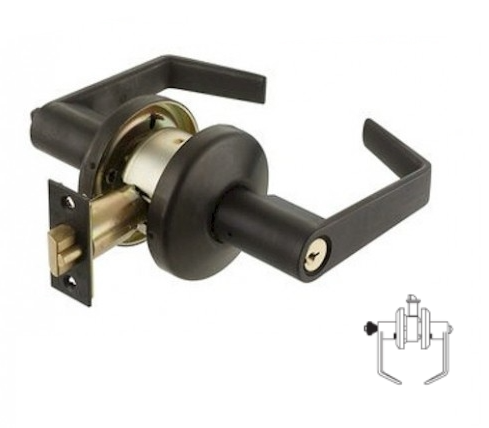

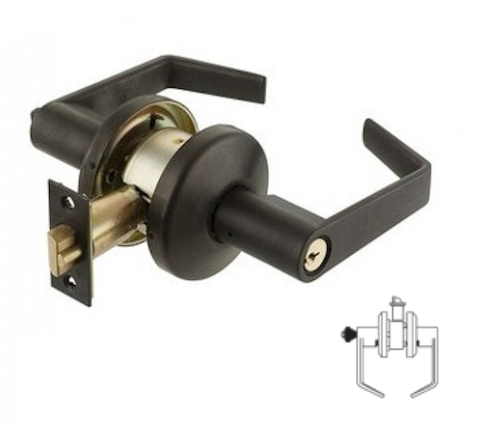

Entrance: Turn / Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.
Storelock: Dead locking latch bolt operated by lever from either side, except when both levers are locked by key in lever from either side.

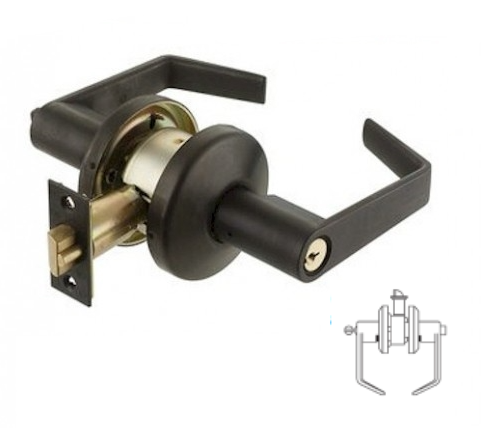

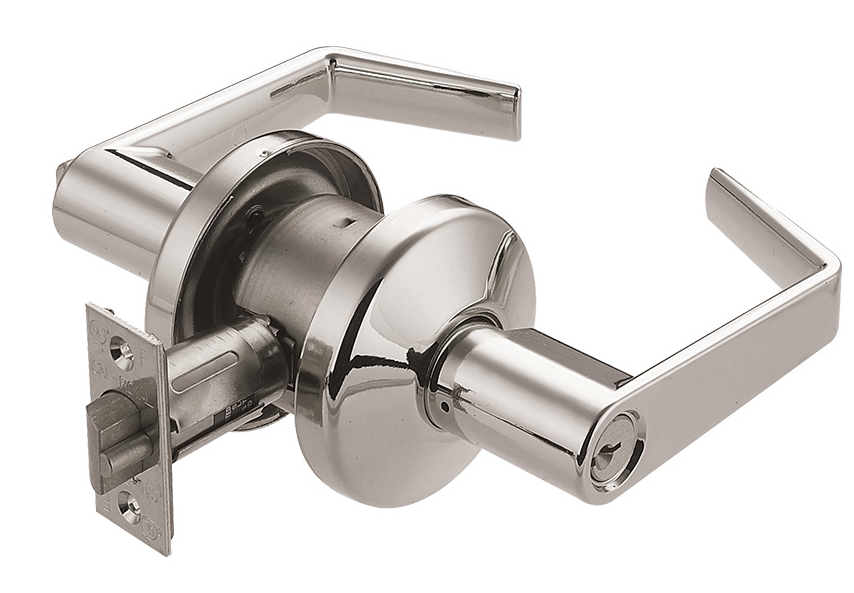

Classroom: Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.
Communicating: Dead locking latch bolt operated by lever from either side. Turning key in either lever locks or unlocks its own lever independently.
Storeroom: Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.
Institution: Dead locking latch bolt operated by key in lever from either side. Both lever always fixed.
Dormitory: Dead locking latch bolt operated by lever from either side except when outside lever is locked by key or by push button on inside lever. Key in outside lever locks or unlocks outside lever. Outside key releases push button when locked from inside. Rotating inside lever or closing the door releases push button.
Privacy: Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door releases push button.
Passage: Latch bolt operated by lever from either side at all times.

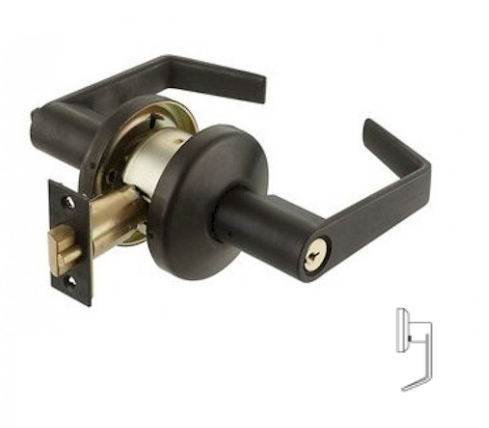

Dummy: Single dummy trim for one side of door. Pull only.

More Information

Specifications	Door Ranges -1 ⅜” to 2” thickness Backset- 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional Latchbolt: ½” Throw solid brass, reversible for RH or LH applications. UL Listed Latch Faceplate -2 ¼” x 1”, square corner packed with ⅛” plastic filler for 1 ⅛” width. Strikes - 2 ¼" x 1" Faceplate and T-Strike. Keying- 6-pin “C” keyway cylinder, 2 keys per lock. Exposed Trim-Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish. Bore Diameter - 1” for the latch. 2 ⅛” for lock housing. ANSI Standards-Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
UPC	722208644625

Specifications

Door Ranges -1 ⅜” to 2” thickness
Backset- 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional
Latchbolt: ½” Throw solid brass, reversible for RH or LH applications. UL Listed
Latch Faceplate -2 ¼” x 1”, square corner packed with ⅛” plastic filler for 1 ⅛” width.
Strikes - 2 ¼" x 1" Faceplate and T-Strike.
Keying- 6-pin “C” keyway cylinder, 2 keys per lock.
Exposed Trim-Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
Bore Diameter - 1” for the latch. 2 ⅛” for lock housing.
ANSI Standards-Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
