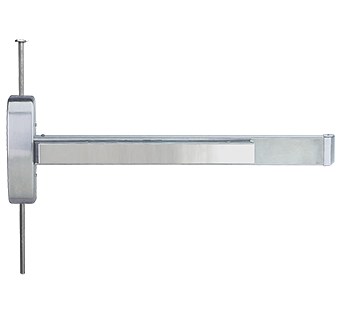

Cal-Royal N-98CVR Series Grade 1 Concealed Vertical Rod Exit Device for Wood & Metal Doors

N-98CVR & N-F98CVR SERIES:

ANSI A156.3, GRADE 1 heavy duty exit device
Americans with Disability Act (ADA) Compliant, 5 lbs opening force on ADA products only
UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
UL Listed for Fire Exit Hardware. 3 hours.

Specifications	LBR (Optional) - No Bottom Strike. Free access for wheel chairs, stretchers and carts which eliminates tripping potential and disfiguration of floors due to dragging of bottom bolts. For Doors - Wood or Metal. 1 ¾” minimum thickness, 4 ½” minimum stile width Top & Bottom Chassis - Steel Material Chassis Cover - Stainless Steel Material Mounting - Furnished standard with wood and machine screws End Cap - Stainless Steel Construction Hand - Easily field reversible. Specify at time of order LHR, RHR for convenience ANSI Standard - A156.3, Grade 1 Strikes - N-260 & N-265 (Steel), 233 (Stainless Steel) Fire Exit Hardware - N-F98CVR Series for fire exit hardware for all types of 8’ x 10’ double doors, LBR Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes. Rail Height - Specify door opening and mounting height of the center line of rail when ordering a Vertical Rod Exit Device 41” from floor Alarm - Prefix “NALRM” before PART # Dogging Feature - Cylinder dogging available for non-rated applications
UPC	722208641273

Specifications

LBR (Optional) - No Bottom Strike. Free access for wheel chairs, stretchers and carts which eliminates tripping potential and disfiguration of floors due to dragging of bottom bolts.
For Doors - Wood or Metal. 1 ¾” minimum thickness, 4 ½” minimum stile width
Top & Bottom Chassis - Steel Material
Chassis Cover - Stainless Steel Material
Mounting - Furnished standard with wood and machine screws
End Cap - Stainless Steel Construction
Hand - Easily field reversible. Specify at time of order LHR, RHR for convenience
ANSI Standard - A156.3, Grade 1
Strikes - N-260 & N-265 (Steel), 233 (Stainless Steel)
Fire Exit Hardware - N-F98CVR Series for fire exit hardware for all types of 8’ x 10’ double doors, LBR Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.
Rail Height - Specify door opening and mounting height of the center line of rail when ordering a Vertical Rod Exit Device 41” from floor
Alarm - Prefix “NALRM” before PART #
Dogging Feature - Cylinder dogging available for non-rated applications

UPC

722208641273
