Cal-Royal ES1433 Grade 1 Universal Electric Strike - Aluminum

Electric Strike is an access control device, it replaces the standard door strike on the door frame and connected to a power supply. Indoor or outdoor, cylindrical or mortise lockset compatible.

Used in electromagnetic locking systems to control the locking mechanism on doors in secure areas.

Features:

• Designed for use with Cylindrical or Mortise Locksets without a deadbolt
• For Hollow Metal and Wood Frame Applications
• Non-Handed, Fully Reversible
• Field Reversible for Fail Safe or Fail Secure Operation
• Static Strength: 1500 lbs
• Dynamic Strength: 70 ft-lbs
• Endurance Rating: 250,000 Cycles (UL Tested), & 1,000,000 Cycles (Factory Tested)

Packaging Includes:

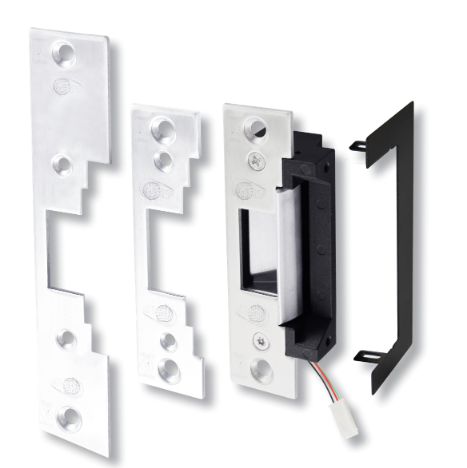

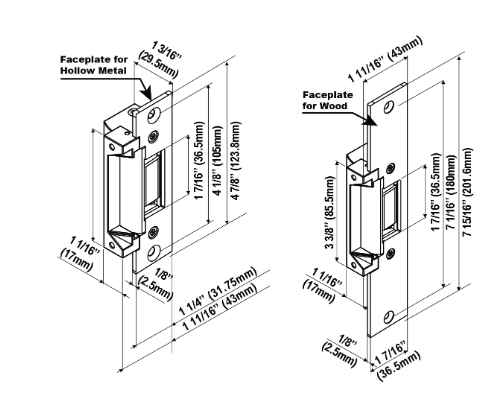

• 1 Stainless Steel & 2 Aluminum faceplates for Hollow Metal and Wood Frames

  • ESFP-478 US32D (Faceplate for Metal)

  • ESFP-478 ALUM (Faceplate for Metal)

  • ESFP-715 ALUM (Faceplate for Wood)

• Trim Plate also included, in case of over-cutting to cover up any errors.

• Stick-On Template for easier installation
