Cal-Royal ESC7730 Passage Exit Device Trim

Cal-Royal ESC7730 Passage Exit Device Trim

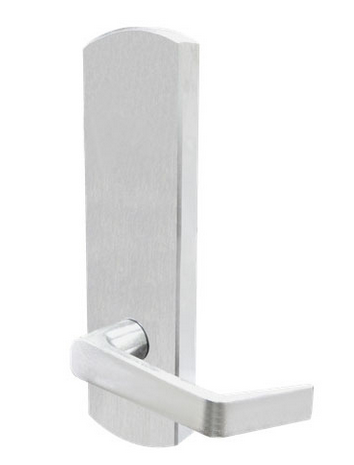

The Cal-Royal ESC7730 passage exit device trim remains freely operable for applications that require unrestricted operation of the outside trim. Its non-handed design and escutcheon that fits and covers a 161 cutout help match the trim to your door preparation.

Passage function and construction

• Function: Passage. The trim is always operable and free.
• Handing: Non-handed.
• Construction: Grade 1 hardened steel heavy-duty tailpiece.

Dimensions and door preparation

• Door thickness: Standard 1¾ inches; also available for 2¼-inch doors. Confirm the required configuration for your door.
• Escutcheon dimensions: 2¾ inches wide × 10¼ inches long.
• Lever length: 4¾ inches.
• Door preparation: Fits and covers a 161 cutout.

Exit device compatibility

Available for compatible fire-rated and non-fire-rated rim and vertical rod exit devices. Confirm compatibility with the specific exit device and door assembly before ordering; fire-rated suitability depends on the selected configuration.

Select the required finish from the available options. Before ordering, verify passage operation, door thickness, door preparation, and exit device compatibility.
