Cal-Royal ESC7740 Grade 1 Dummy Exit Device Trim

Cal-Royal ESC7740 Grade 1 Dummy Exit Device Trim

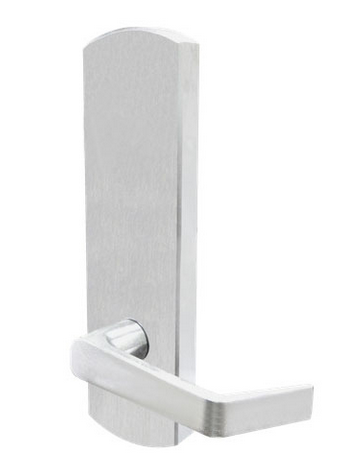

The Cal-Royal ESC7740 is a Grade 1 dummy escutcheon trim with ANSI Function 10 for compatible exit devices. Its non-handed design, 4¾-inch lever, and escutcheon that covers a 161 cutout help you match the trim to your door preparation.

Function and construction

• Function: Dummy escutcheon trim, ANSI Function 10.
• Handing: Non-handed.
• Construction: Grade 1 with a hardened steel heavy-duty tailpiece, as listed in the existing product specifications.

Dimensions and door preparation

• Door thickness: For 1¾-inch and 2¼-inch doors. Confirm the required configuration for your door thickness.
• Escutcheon dimensions: 2¾ inches wide × 10¼ inches long.
• Lever length: 4¾ inches.
• Door preparation: Fits and covers a 161 cutout.

Exit device compatibility

Available for compatible fire-rated and non-fire-rated rim and vertical rod exit devices. Confirm compatibility with your specific exit device and door assembly before ordering; this application statement does not establish a fire rating for every configuration.

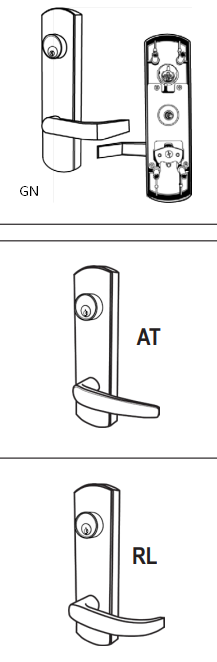

Select the required finish and lever design from the available options. Verify the dummy function, door thickness, door preparation, and device compatibility before ordering.
