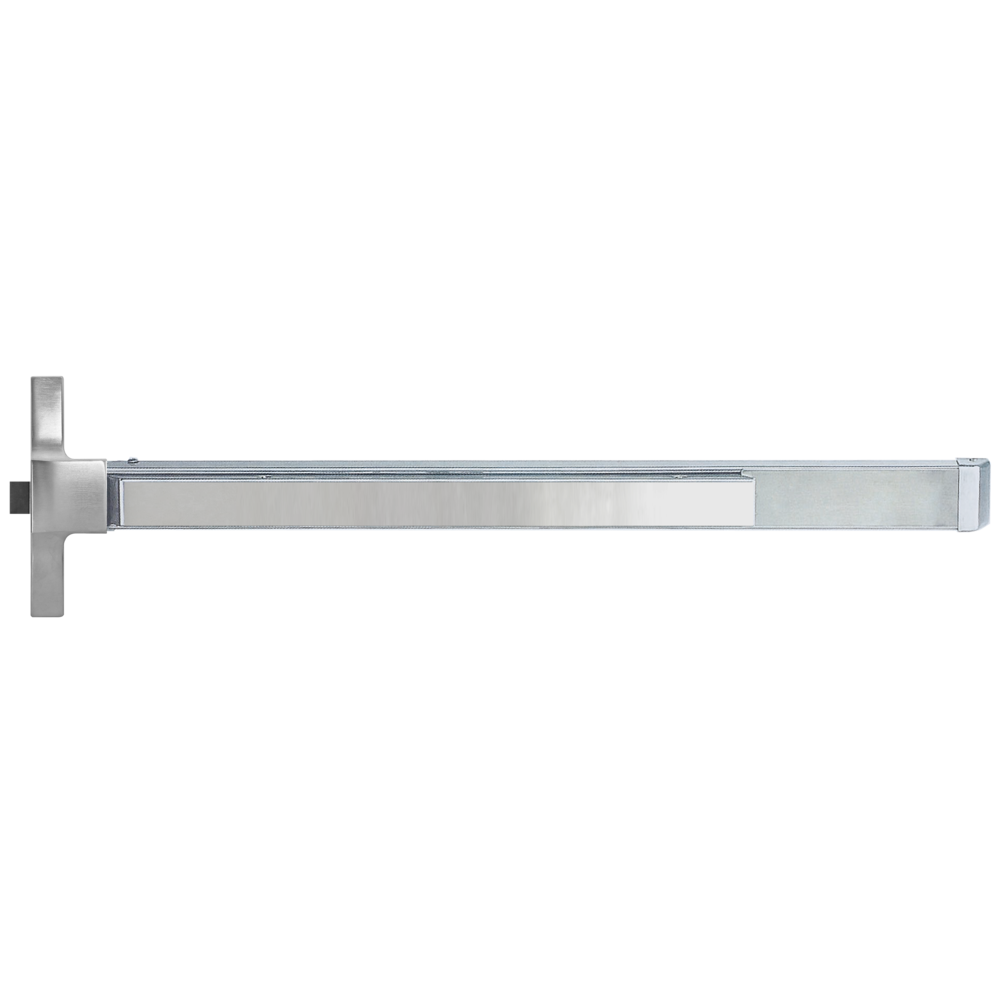

Cal-Royal GLS9800 Series Grade 1 Narrow Stile Rim Exit Device

Cal-Royal GLS9800 Series Grade 1 Narrow Stile Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

GLS9800 & FGLS9800 SERIES

• ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
• Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze, or stainless steel. Rail travels in direction of the door swing.
• Trims are thru bolted for additional security.
• Conforms & Meets ADA Regulations. (ADA products only)
• UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
• UL Listed for Fire Exit Hardware. 3 hours.
• Uncompromising security and safety in single and double fire exit doors.
• Chassis mounted unit construction. Non-Handed.
• For Doors: Wood, Metal, or Aluminum Glass doors with 1 ¾” minimum stile width, 1 ¾” thickness for single or double door application
