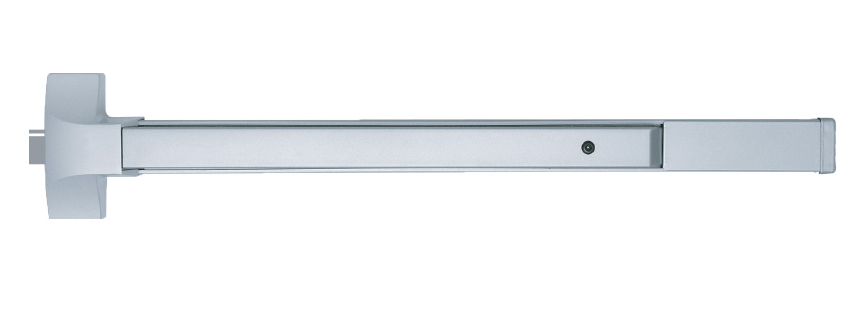

Cal-Royal T5000 Series Grade 1 Rim Exit Device

SKU: TF5000EO36-ALUM

Brand : Cal-Royal

In Stock

Usually Ships Next Day

Finish: Aluminum

Size: 36"

36" 48"

Rating: Fire Rated

Fire Rated Panic Rated

Product variants

Quantity:

Subtotal: $181.65

Questions? Live Chat, Email or Call 332-255-3200

Secured and trusted checkout with

T5000 & TF5000 SERIES

ANSI A156.3, GRADE 1 Heavy Duty Exit Device Rim design.
UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
UL Listed for Fire Exit Hardware. 3 hours.
(A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
Chassis mounted unit construction.
Available in standard functions. Lever and knob trims are have an optional clutch freewheeling mechanism. Rose covers 161 cut out.

Specifications	For Doors - 1 ¾" thick standard. 3 ¾" minimum stile width for single or double door application using standard 938 strike and pull or lever trims. Chassis - Steel (Panic & Fire Grade) Cover - Covers stock hollow metal doors with 161 cut out Mounting - Furnished standard with wood and machine screws. Available with thru-bolts on request. Thru bolts are standard packaging on fire-rated devices. End Cap - Steel construction Hand - Non-Handed, center hub. Latch Bolt - Stainless steel ¾" throw Spring - Steel throughout ANSI Standard - A156.3, Grade 1 Rail Assembly - Heavy gauge steel, painted. Strike - 938 packed standard. Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Mullion - Available. UL and ULC Listed - T5000 Series for panic. TF5000 Series for fire exit hardware for all types of 3' x 7' single doors and 6' x 7' double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
UPC	722208641334

Specifications

For Doors - 1 ¾" thick standard. 3 ¾" minimum stile width for single or double door application using standard 938 strike and pull or lever trims.
Chassis - Steel (Panic & Fire Grade)
Cover - Covers stock hollow metal doors with 161 cut out
Mounting - Furnished standard with wood and machine screws. Available with thru-bolts on request. Thru bolts are standard packaging on fire-rated devices.
End Cap - Steel construction
Hand - Non-Handed, center hub.
Latch Bolt - Stainless steel ¾" throw
Spring - Steel throughout
ANSI Standard - A156.3, Grade 1
Rail Assembly - Heavy gauge steel, painted.
Strike - 938 packed standard.
Dogging Feature - Allen-type key furnished standard on non-fire labeled devices.
Mullion - Available.
UL and ULC Listed - T5000 Series for panic. TF5000 Series for fire exit hardware for all types of 3' x 7' single doors and 6' x 7' double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
