Cal-Royal T5000V Series Grade 1 Surface Vertical Rod Exit Device

Cal-Royal T5000V Series Grade 1 Surface Vertical Rod Exit Device

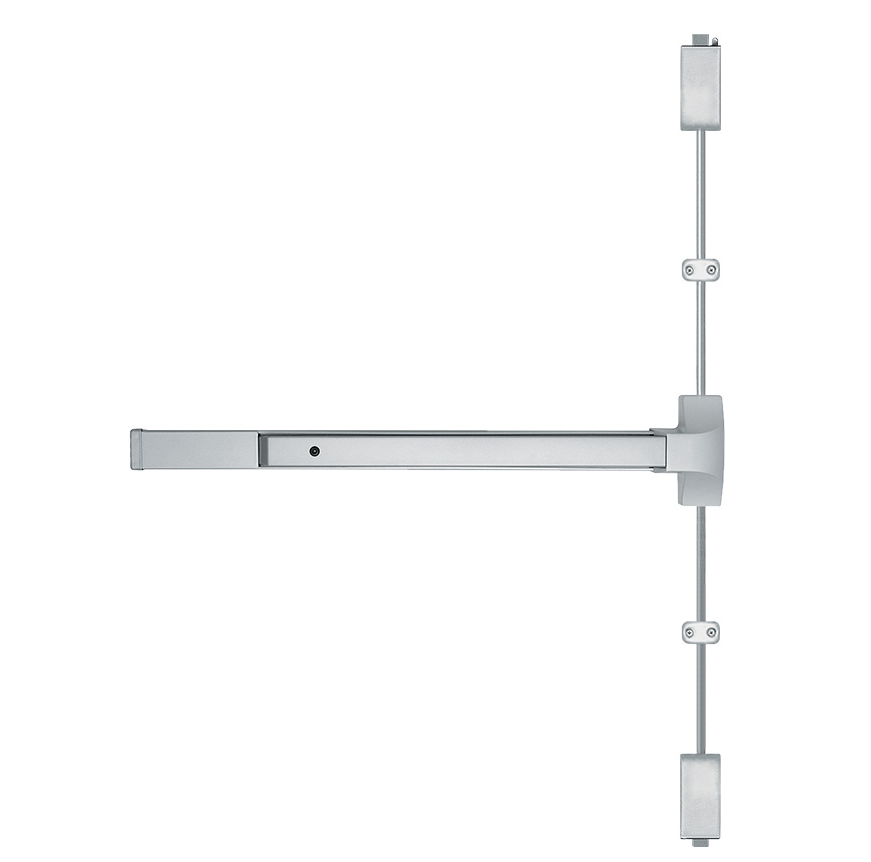

The Cal-Royal T5000V Series is a heavy-duty surface vertical rod exit device for commercial door openings. ANSI A156.3 Grade 1 construction and a chassis-mounted unit assembly make it a practical option when your project calls for a surface vertical rod configuration rather than a rim exit device.

This listing offers a 36-inch by 84-inch size with Aluminum and US32D finish options. Choose the panic- or fire-rated configuration appropriate to your door assembly, and confirm the required trim function before ordering.

Construction and trim features

• Device type: Surface vertical rod exit device in the T5000V and TF5000V Series.
• ANSI standard: A156.3, Grade 1 heavy-duty construction.
• Assembly: Chassis-mounted unit construction.
• Trim functions: Standard functions are available within the series.
• Optional clutch: Lever and knob trims offer an optional freewheeling clutch mechanism; confirm this option on the selected trim if required.
• Door preparation: Trim rose covers a 161 cutout.

Panic and fire-exit ratings

The series specifications list UL panic approval and references to UL10C and UBC 7-2-1997. Fire-exit hardware configurations have a listed 3-hour rating, including an (A) label rating on pairs of doors up to 8 feet by 8 feet swinging in the same or opposite directions. These series rating limits do not change the 36-inch by 84-inch size offered in this listing.

Fire ratings apply to the appropriate fire-exit configuration and door assembly, not interchangeably to every series option.

Before you order

Verify your door dimensions, surface vertical rod preparation, required rating, finish, and compatible outside trim. The broader exit device range includes rim designs, but this listing is specifically for the surface vertical rod device.
