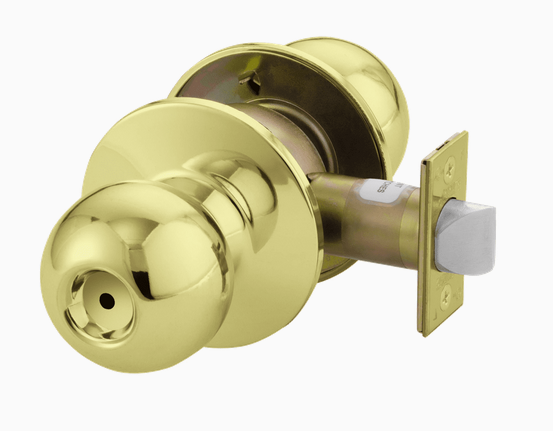

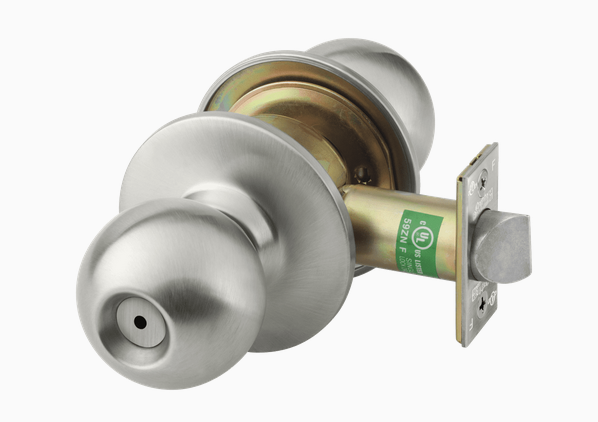

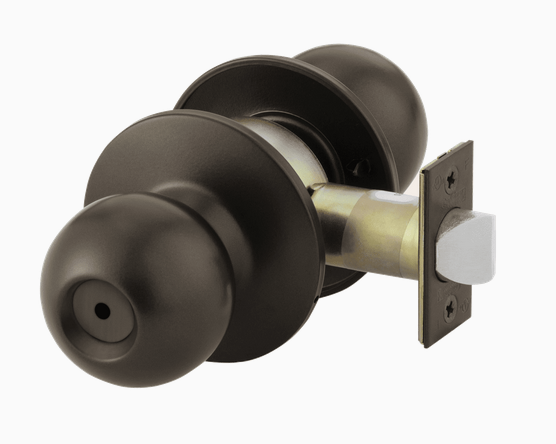

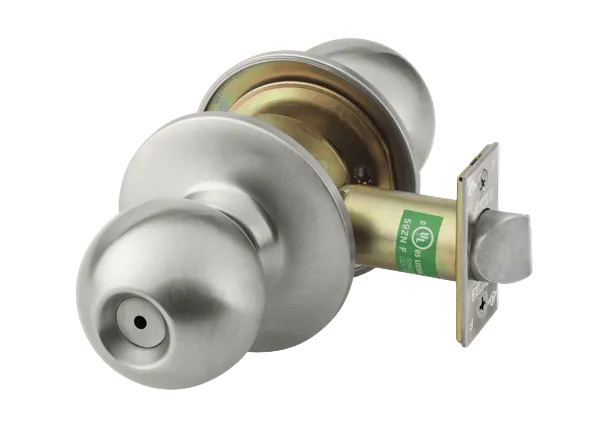

Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock
Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock
Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock
Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock

Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock

Availability: In stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock
$535.80
$535.80
Color: 605 - Bright Brass Clear Coated
Subtotal: $535.80
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • ANSI/BHMA A156.2 Grade 1
  • Non-handed
  • UL Listed

Secured and trusted checkout with

Details
Details
x

Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock

Ideal for demanding commercial, industrial, and institutional applications, the CK4300 Series is a standard cylindrical lockset which combines traditional knob aesthetics with ANSI/BHMA Grade 1 reliability and durability.

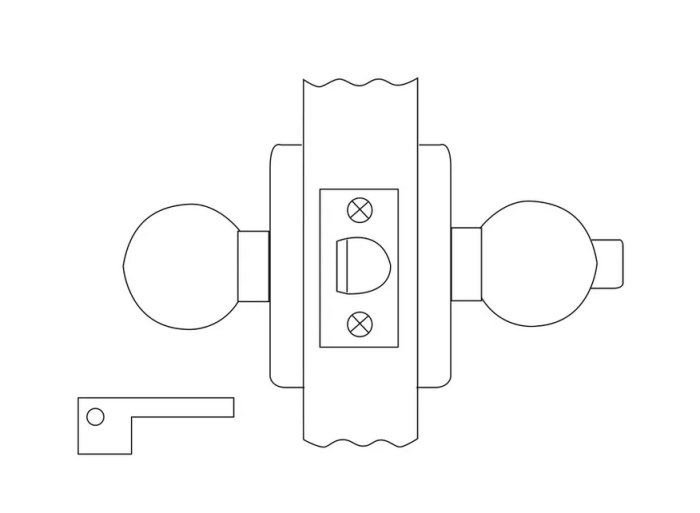

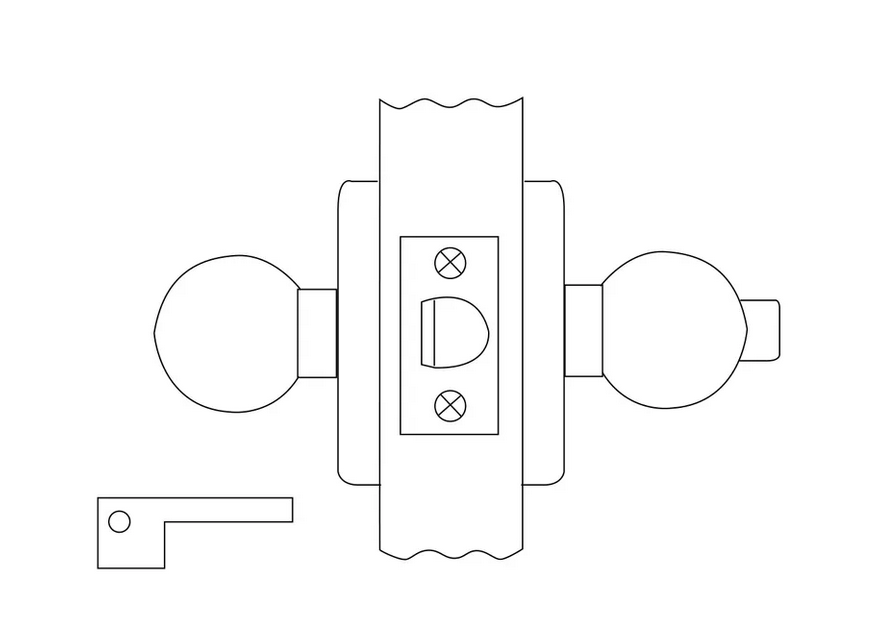

Function:

  • Latchbolt by knob either side.
  • Outside knob locked by push button.
  • Outside knob unlocked by coin turned in emergency slot outside, by rotating inside knob or by closing door.
  • Inside knob always free.

Certifications:

  • UL listed and UL10c compliant

  • UL-cUL Listed for use on fire doors having a rating up to and including 3-hours

  • ANSI/BHMA A156.2, Series 4000, Grade 1

Read more
More Information
More Information
x
Specifications
  • Cylinder Type: Non-Keyed
  • Handing: Non-handed
  • Bolt Projection: 1/2"
  • Std. Strike Height: 4-7/8"
  • Std. Strike Width: 1-1/4"
  • Lock Face Size: 1-1/8" x 2-1/4"
  • Std. Strike Number: SA114
  • Std. Strike Type: ANSI Curved Lip Strike
  • Screws: Wood/Machine Screws
  • Std. Latch Backset Dim: 2-3/4"
  • Rose/Escutcheon Dimensions: 3-1/8"
  • Latch Bore Diameter: 1"
  • Bore Hole Diameter: 2-1/8"
  • Std. Latch Type: Springlatch
  • Door Thickness: 1-3/8" to 2"
  • Rose/Escutcheon Design: 3-1/8" Rose Diameter
  • Std. Latch Number: 787F65
Related
Related
x
literature
See more about ACCENTRA (Formerly Yale) NTM617-NR NexTouch Sectional Mortise Lock w/Pushbutton Keypad - Cylinder Override -w/Thumbturn here
Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock

Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock

Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock
Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock
Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock
Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock

Corbin Russwin CK4320 Grade 1 Privacy Cylindrical Knob Lock

$535.80
Color: 605 - Bright Brass Clear Coated
Compare color
  • 605-bright-brass-clear-coated
  • 613e-dark-oxidized-satin-bronze
  • 630-satin-stainless-steel
Click on color/pattern to compare, click and drag images to reorder
