Corbin Russwin CK4355 Grade 1 Classroom Cylindrical Knob Lock

SKU: CK4355 GRD 630

Brand : Corbin Russwin

In Stock
Product type: Commercial Door Locks

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$725.00
$725.00
Finish: 630 - Satin Stainless Steel
Subtotal: $725.00
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • ANSI/BHMA A156.2 Grade 1

  • Non-handed

  • UL Listed

Secured and trusted checkout with

Corbin Russwin CK4355 Grade 1 Classroom Cylindrical Knob Lock

Ideal for demanding commercial, industrial, and institutional applications, the CK4300 Series is a standard cylindrical lockset which combines traditional knob aesthetics with ANSI/BHMA Grade 1 reliability and durability.

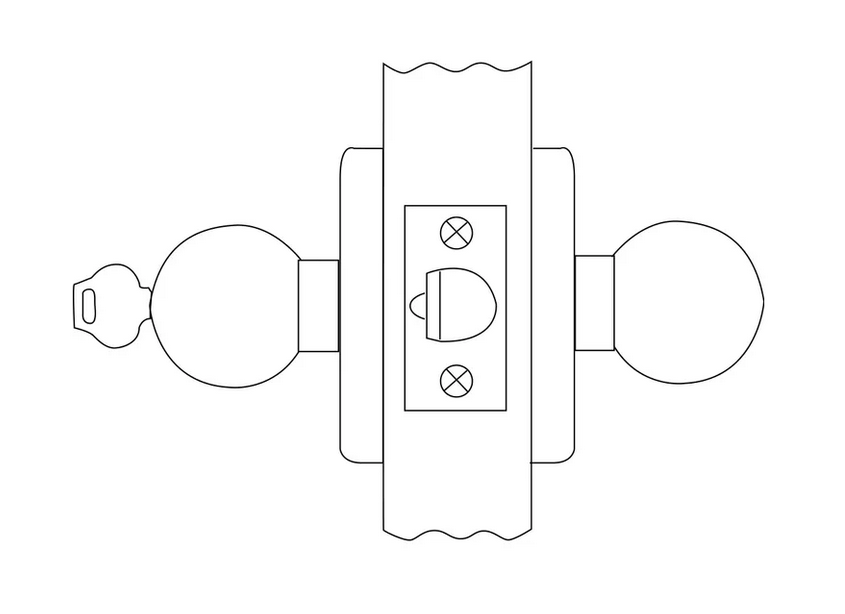

Classroom lock function

When the room needs to be secured, use the outside key to lock the outside knob. The inside knob remains free, so occupants can operate it without unlocking the outside knob first.

  • Deadlocking latchbolt operated by the knob on either side when the outside knob is unlocked.
  • Key outside locks the outside knob.
  • Key outside unlocks the outside knob.
  • Inside knob always free.

Grade 1 commercial construction

The CK4300 Series combines a standard cylindrical lockset format with traditional knob aesthetics and Grade 1 reliability and durability. Choose the CK4355 when your door requires classroom-function key control rather than a passage or privacy function.

Certifications

  • ANSI/BHMA A156.2, Series 4000, Grade 1.
  • UL listed and UL10C compliant.
  • UL-cUL listed for use on fire doors rated up to and including 3 hours.
Specifications
  • Handing: Non-handed
  • Bolt Projection: 1/2"
  • Std. Strike Height: 4-7/8"
  • Std. Strike Width: 1-1/4"
  • Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
  • Keys: Two nickel silver keys
  • Std. Latch Type: Deadlatch
  • Lock Face Size: 1-1/8" x 2-1/4"
  • Std. Strike Number: SA114
  • Std. Strike Type: ANSI Curved Lip Strike
  • Screws: Wood/Machine Screws
  • Std. Latch Backset Dim: 2-3/4"
  • Rose/Escutcheon Dimensions: 3-1/8"
  • Latch Bore Diameter: 1"
  • Bore Hole Diameter: 2-1/8"
  • Door Thickness: 1-3/8" to 2"
  • Std. Latch Number: 787F66
  • Rose/Escutcheon Design: 3-1/8" Rose Diameter
Corbin Russwin CK4355 Grade 1 Classroom Cylindrical Knob Lock

Corbin Russwin CK4355 Grade 1 Classroom Cylindrical Knob Lock

Corbin Russwin CK4355 Grade 1 Classroom Cylindrical Knob Lock

$725.00
Finish: 630 - Satin Stainless Steel
Compare color

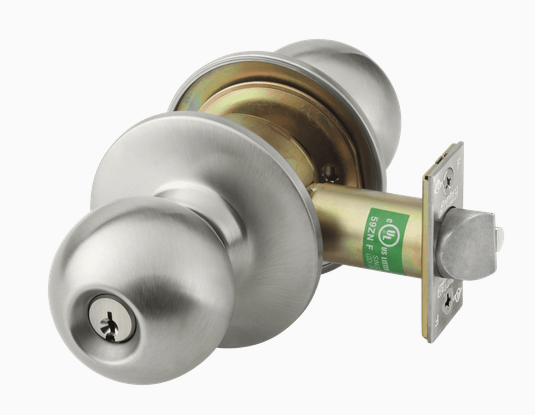

  • 630-satin-stainless-steel

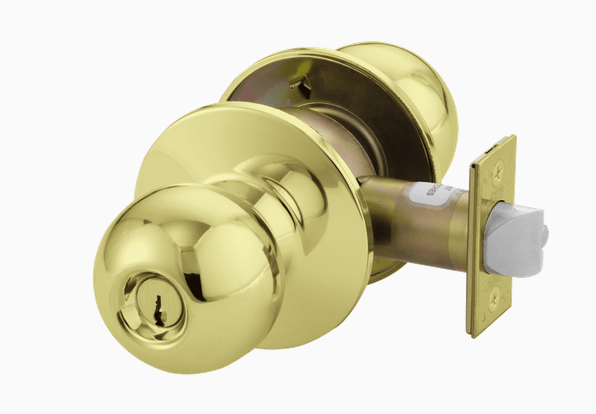

  • 605-bright-brass

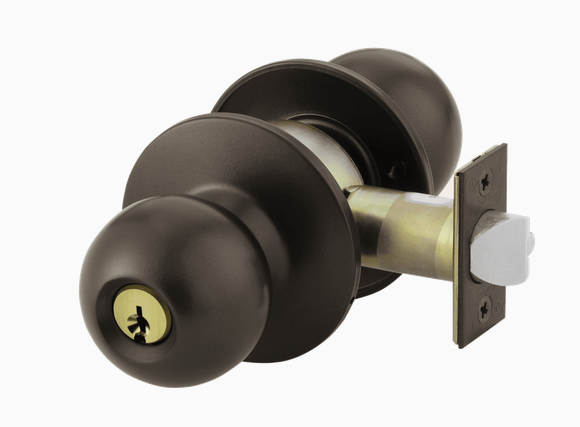

  • 613e-dark-oxidized-satin-bronze
Click on color/pattern to compare, click and drag images to reorder
