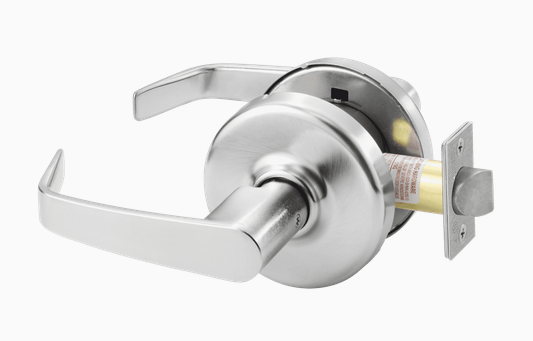

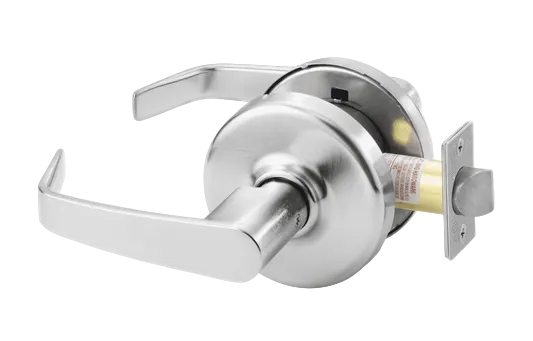

Corbin Russwin CL3110 Grade 1 Passage/Closet Lever Set

The Corbin Russwin CL3110 is a Grade 1 passage/closet cylindrical lever set for high-use commercial, industrial, and institutional doors. Both levers remain free at all times, providing latching without locking.

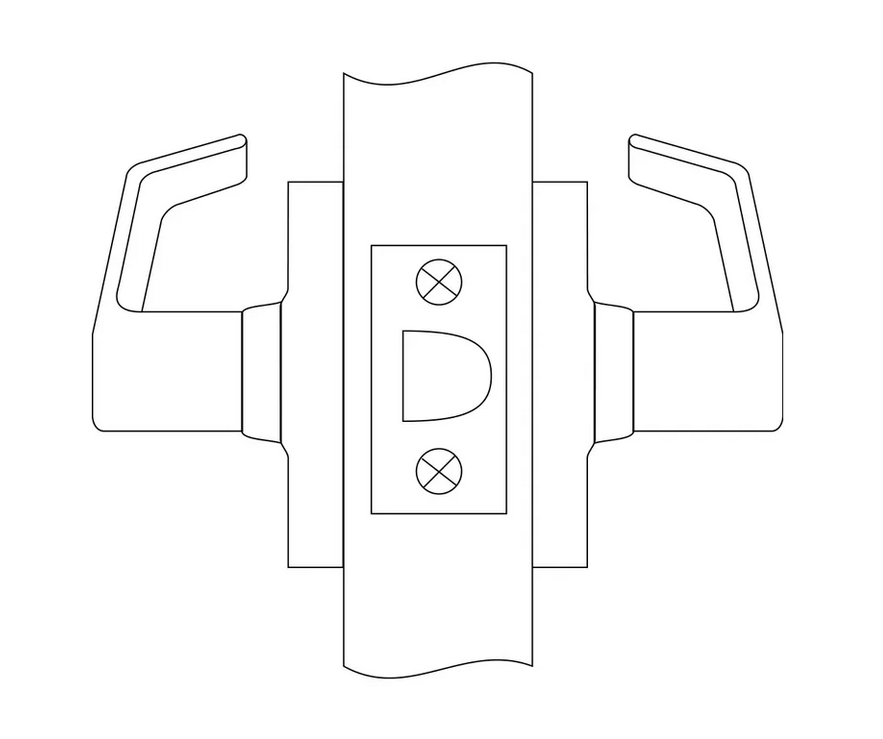

Function

For a frequently used passage or closet door that does not need restricted entry, the CL3110 lets users operate the latch from either side without a key or locking button.

Latchbolt operated by the lever on either side.
Both levers always free.
Non-locking passage/closet operation.

CL3100 Series construction

The CL3100 Series is designed for strength, durability, and quiet operation in high-use applications. Its torque-resistant T-Zone construction is designed to withstand abusive environments, with strength and durability exceeding ANSI/BHMA Grade 1 standards.

Certifications

Environmental Product Declaration (EPD).
Florida Building Code Approved FL# 3067.
UL listed and UL10c compliant.
Americans with Disabilities Act (ADA) Compliant.
Buy American Act*
UL-cUL Listed for use on fire doors having a rating up to and including 3-hours.
Florida Building Code Windstorm Certified.
ANSI/BHMA A156.2, Series 4000, Grade 1.

*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.

More Information

Specifications	Cylinder Type:Non-Keyed Handing: Non-handed Door Thickness: 1-3/4" to 2" Bolt Projection: 1/2" Std. Strike Height: 4-7/8" Std. Strike Width: 1-1/4" Lock Face Size: 1-1/8" x 2-1/4" Std. Strike Number: SA114 Std. Strike Type: ANSI Curved Lip Strike Screws: Wood/Machine Screws Std. Latch Backset Dim: 2-3/4" Latch Bore Diameter: 1" Bore Hole Diameter: 2-1/8" Rose/Escutcheon Design: D Rose Rose/Escutcheon Dimensions: 2-3/4" Std. Latch Type: Springlatch
