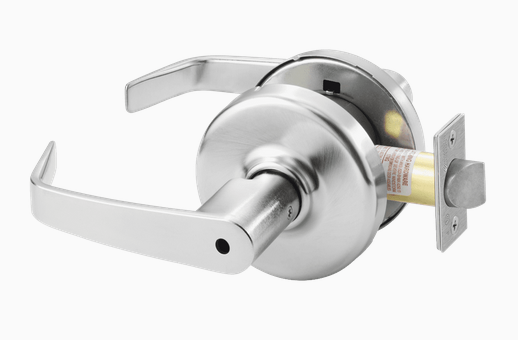

Corbin Russwin CL3120 Grade 1 Privacy Cylindrical Lock

The CL3100 Series is an ANSI/BHMA Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability, and quiet operation. It subtly complements any high-use commercial, industrial and institutional application. Plus, designed to withstand abusive environments, the CL3100 Series features our unique torque-resistant T-Zone construction and provides strength and durability far exceeding the ANSI/BHMA Grade 1 standards.

Function:

Throw-off latchbolt by lever.
Outside lever locked by push button on inside lever.
Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door.
Inside lever always free.

Certifications:

Environmental Product Declaration (EPD)
Florida Building Code Approved FL# 3067
UL listed and UL10c compliant
Americans with Disabilities Act (ADA) Compliant
Buy American Act*

*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
UL-cUL Listed for use on fire doors having a rating up to and including 3-hours
Florida Building Code Windstorm Certified
ANSI/BHMA A156.2, Series 4000, Grade 1

More Information

Specifications	Cylinder Type:Non-Keyed Handing: Non-handed Door Thickness: 1-3/4" to 2" Bolt Projection: 1/2" Std. Strike Height: 4-7/8" Std. Strike Width: 1-1/4" Lock Face Size: 1-1/8" x 2-1/4" Std. Strike Number: SA114 Std. Strike Type: ANSI Curved Lip Strike Screws: Wood/Machine Screws Std. Latch Backset Dim: 2-3/4" Latch Bore Diameter: 1" Bore Hole Diameter: 2-1/8" Rose/Escutcheon Design: D Rose Rose/Escutcheon Dimensions: 2-3/4" Std. Latch Type: Springlatch
