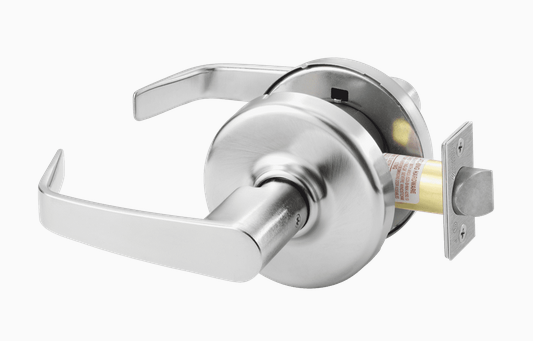

Corbin Russwin CL3140NT Grade 1 Time Out Exit Latch

Corbin Russwin CL3140NT Grade 1 Time Out Exit Latch

The Corbin Russwin CL3140NT is a Grade 1 cylindrical exit latch for high-use commercial, industrial, and institutional applications. The inside lever operates the deadlocking latchbolt and remains free at all times, while the outside lever stays locked.

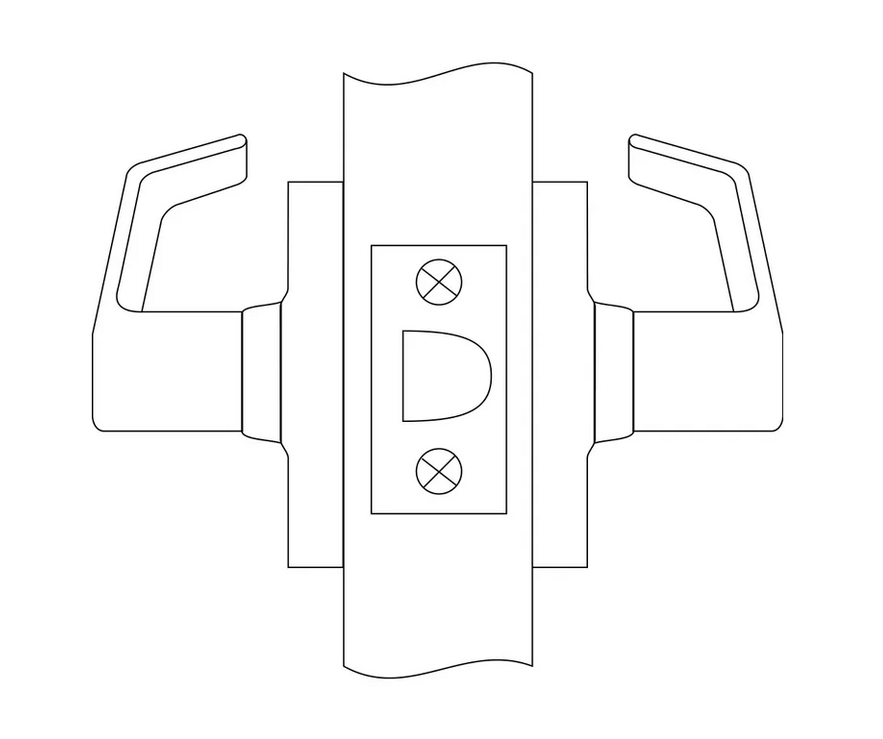

Function

Choose the CL3140NT when the required operation is an always-free inside lever with an always-locked outside lever. Its function differs from passage hardware, which allows lever operation from both sides.

• Deadlocking latchbolt operated by the inside lever.
• Outside lever always locked.
• Inside lever always free.

CL3100 Series construction

The CL3100 Series combines strength, durability, and quiet operation for high-use doors. Its torque-resistant T-Zone construction is designed to withstand abusive environments, with strength and durability exceeding ANSI/BHMA Grade 1 standards.

Certifications

• Environmental Product Declaration (EPD).
• Florida Building Code Approved FL# 3067.
• UL listed and UL10c compliant.
• Americans with Disabilities Act (ADA) Compliant.
• Buy American Act*
• UL-cUL Listed for use on fire doors having a rating up to and including 3-hours.
• Florida Building Code Windstorm Certified.
• ANSI/BHMA A156.2, Series 4000, Grade 1.

*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
