Corbin Russwin CL3180 Grade 1 Passage Lever x Blank Plate Communicating Cylindrical Lock
Corbin Russwin CL3180 Grade 1 Passage Lever x Blank Plate Communicating Cylindrical Lock
Corbin Russwin CL3180 Grade 1 Passage Lever x Blank Plate Communicating Cylindrical Lock

Corbin Russwin CL3180 Grade 1 Passage Lever x Blank Plate Communicating Cylindrical Lock

SKU: CL3180-AZD-605

Brand : Corbin Russwin

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$468.90
$468.90
Finish: 605

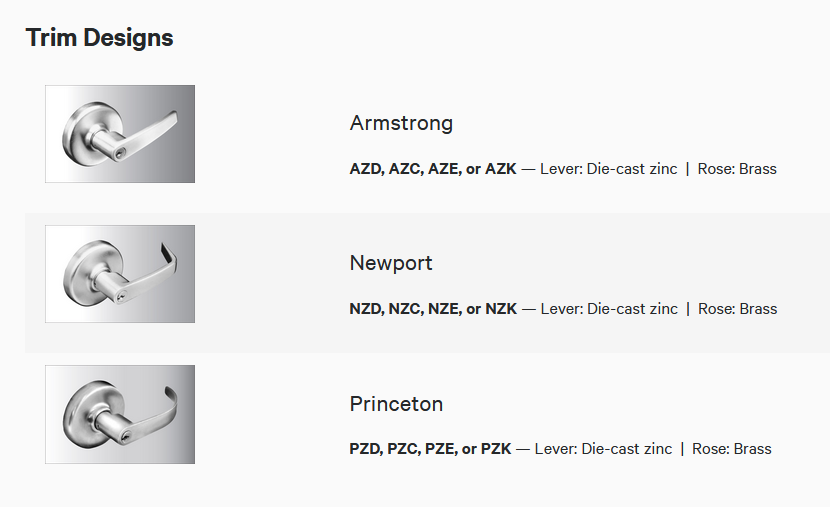

Lever Design: AZD
Subtotal: $468.90
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

Corbin Russwin CL3180 Grade 1 Passage Lever x Blank Plate Communicating Cylindrical Lock

The CL3100 Series is an ANSI/BHMA Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability, and quiet operation. It subtly complements any high-use commercial, industrial and institutional application. Plus, designed to withstand abusive environments, the CL3100 Series features our unique torque-resistant T-Zone construction and provides strength and durability far exceeding the ANSI/BHMA Grade 1 standards.

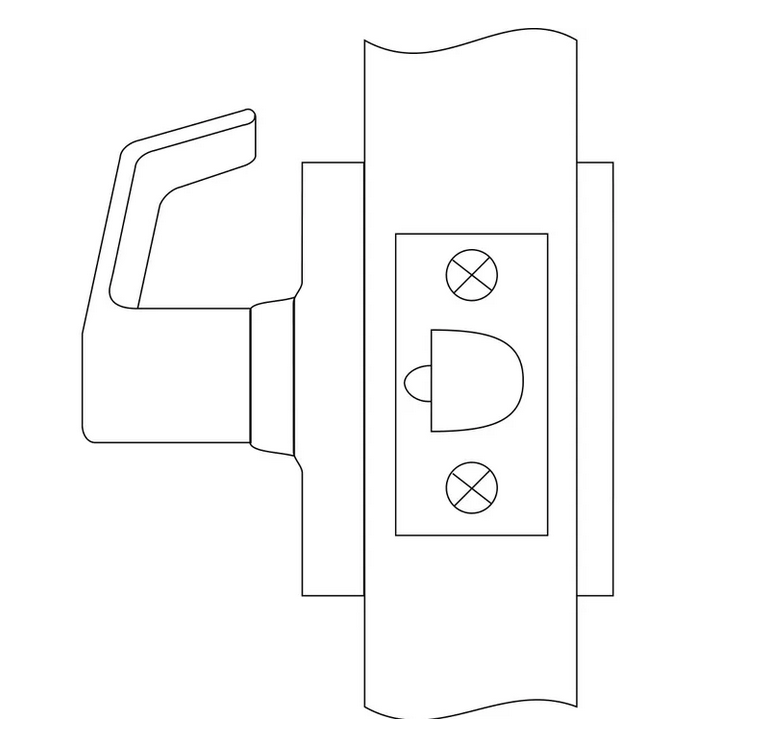

Function:

  • Deadlocking latchbolt by lever.
  • Lever on one side; blank plate on other side.
  • Lever always free.
  • For single or double communicating doors.

Certifications:

  • Environmental Product Declaration (EPD)

  • Florida Building Code Approved FL# 3067

  • UL listed and UL10c compliant

  • Americans with Disabilities Act (ADA) Compliant

  • Buy American Act*

    *Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.

  • UL-cUL Listed for use on fire doors having a rating up to and including 3-hours

  • Florida Building Code Windstorm Certified

  • ANSI/BHMA A156.2, Series 4000, Grade 1

Read more
More Information
Specifications
  • Cylinder Type:Non-Keyed
  • Handing: Non-handed
  • Door Thickness: 1-3/4" to 2"
  • Bolt Projection: 1/2"
  • Std. Strike Height: 4-7/8"
  • Std. Strike Width: 1-1/4"
  • Lock Face Size: 1-1/8" x 2-1/4"
  • Std. Strike Number: SA114
  • Std. Strike Type: ANSI Curved Lip Strike
  • Screws: Wood/Machine Screws
  • Std. Latch Backset Dim: 2-3/4"
  • Latch Bore Diameter: 1"
  • Bore Hole Diameter: 2-1/8"
  • Rose/Escutcheon Design: D Rose
  • Rose/Escutcheon Dimensions: 2-3/4"
  • Std. Latch Type: Springlatch
