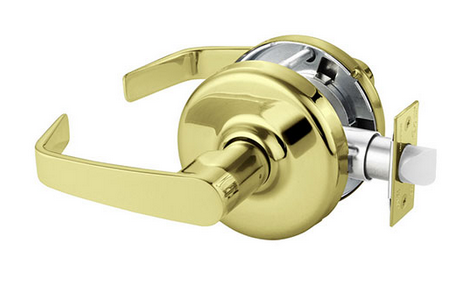

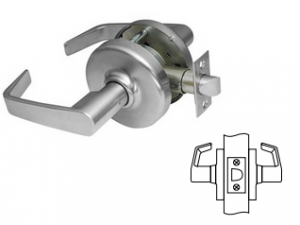

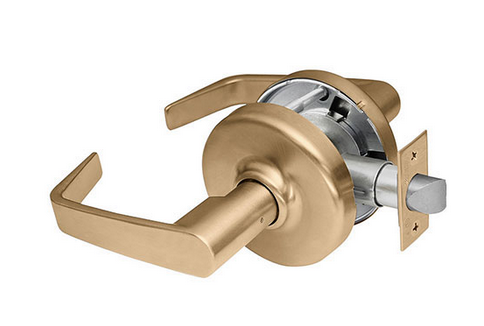

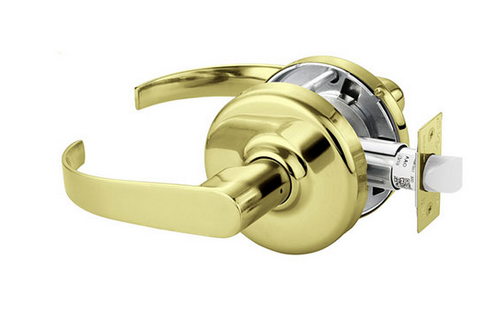

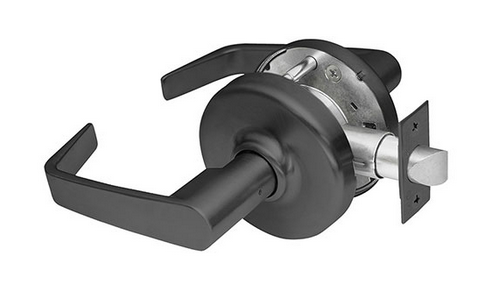

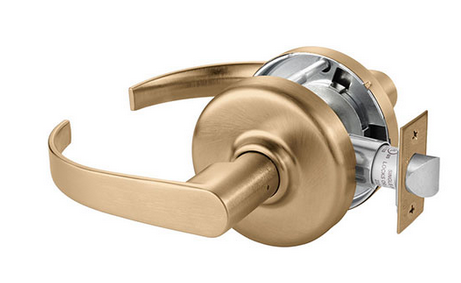

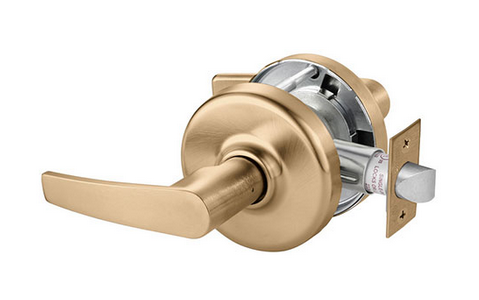

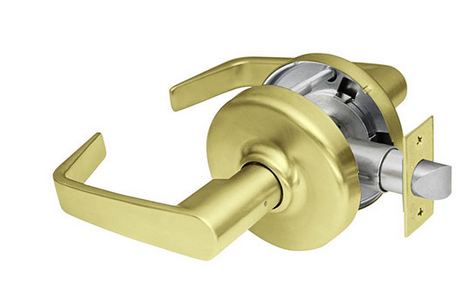

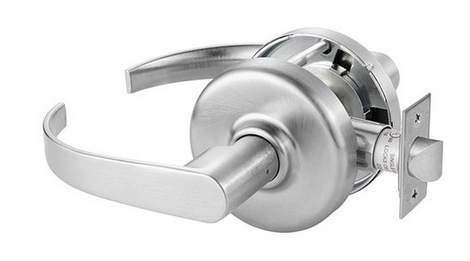

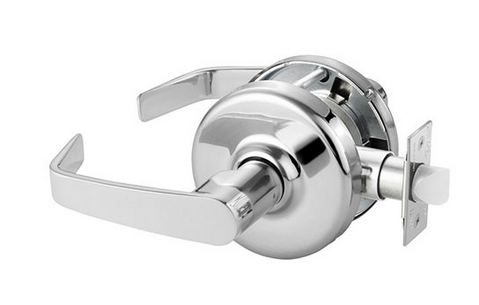

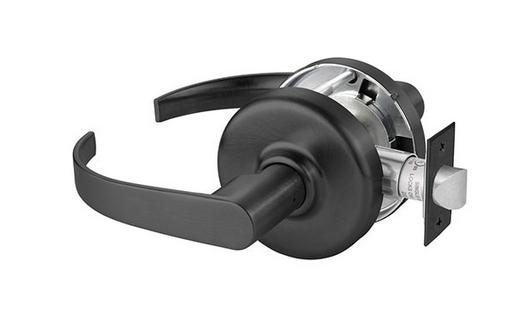

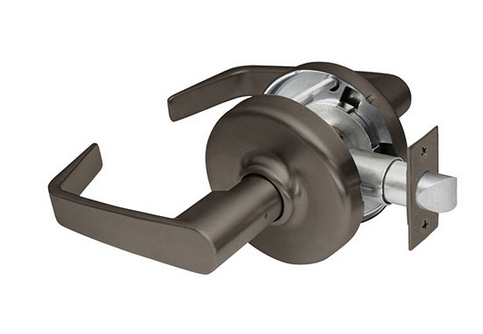

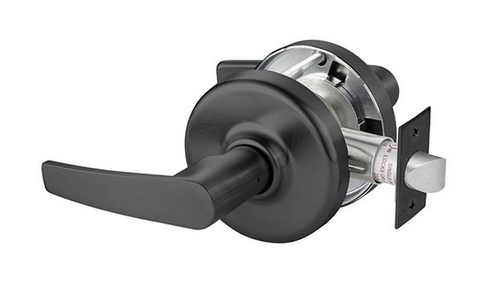

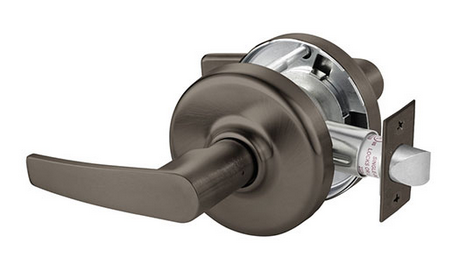

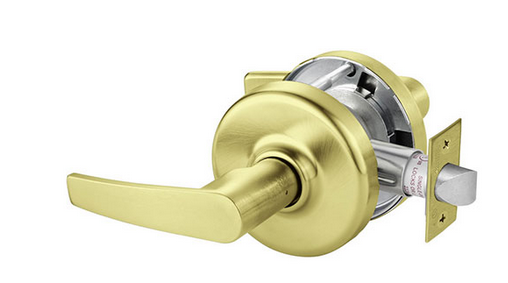

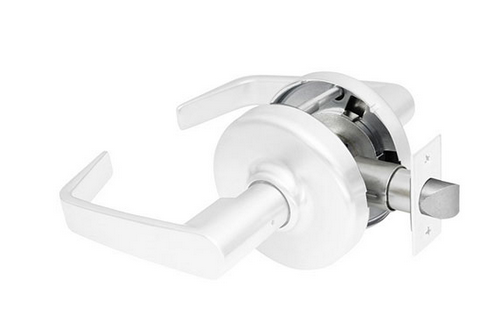

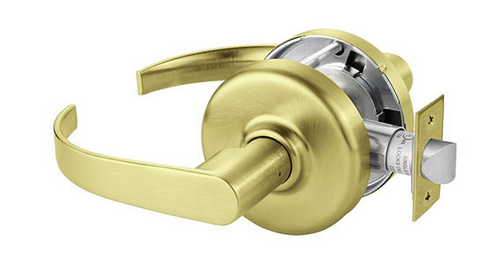

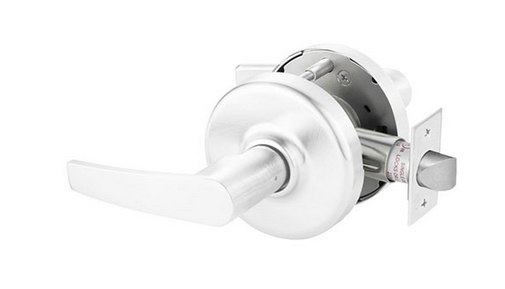

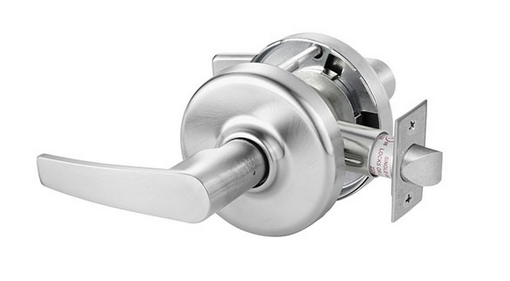

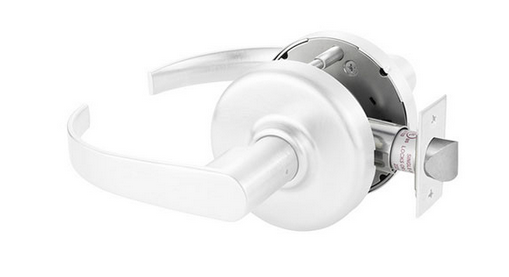

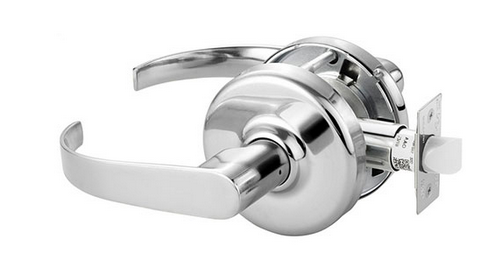

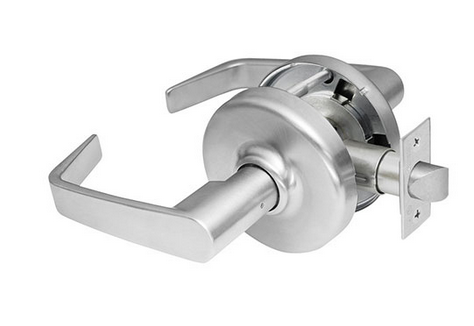

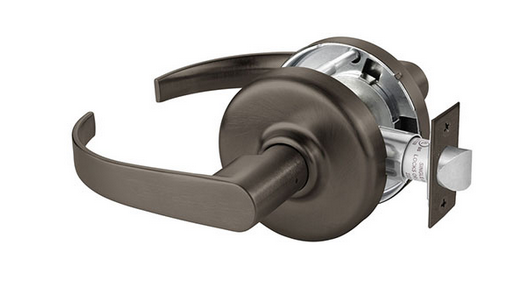

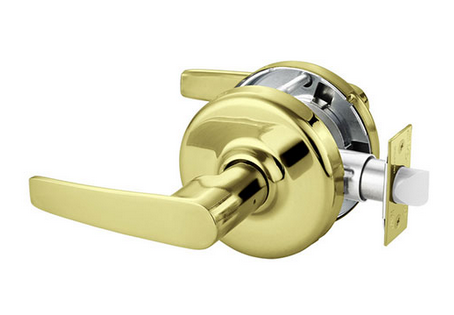

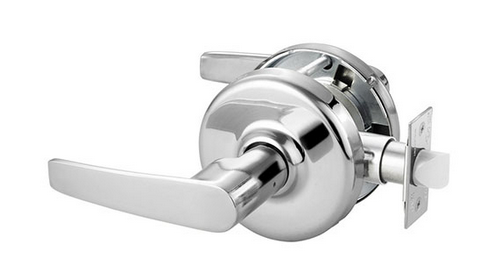

Corbin Russwin CL3810 Grade 2 Passage or Closet Cylindrical Lock

An ANSI/BHMA Grade 2 lever lock which provides a combination of value and performance, the CL3800 Series is designed to be used in light commercial applications, while complementing the look of other Corbin Russwin cylindrical locks.

Function:

Latchbolt by lever either side.
Both levers always free.

Certifications:

CSFM - California State Fire Marshal Approved (old)
UL listed and UL10c compliant
Americans with Disabilities Act (ADA) Compliant
Buy American Act*

*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
UL-cUL Listed for use on fire doors having a rating up to and including 3-hours
Florida Building Code Windstorm Certified
ANSI/BHMA A156.2, Series 4000, Grade 2

More Information

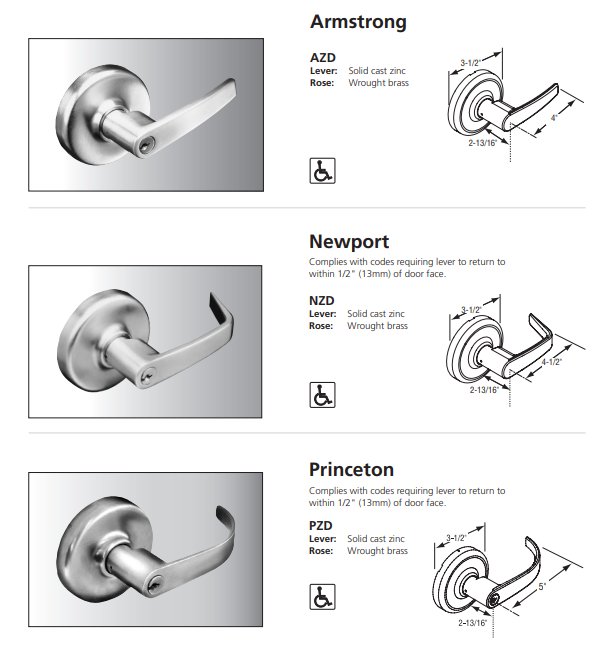

Specifications	Std. Strike Height: 4-7/8" Std. Strike Width: 1-1/4" Screws: Combination Std. Latch Backset Dim: 2-3/4" Latch Bore Diameter: 1" Bore Hole Diameter: 2-1/8" Rose/Escutcheon Design: D Rose Handing: Not Handed Lock Face Size: 2-1/4" x 1-1/8" Std. Strike Number: 217L13 Door Thickness: 1-3/8" - 1-3/4" Bolt Projection: 1/2" Latch Std. Strike Type: ANSI Strike Cylinder Type: Non-keyed Std. Latch Number: 600F09 Std. Latch Type: Spring Latch (Unguarded)
UPC	722208647923
