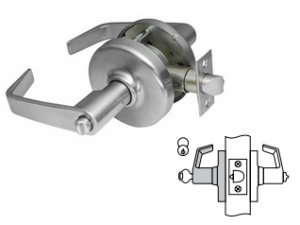

Corbin Russwin CL3851 Grade 2 Entrance or Office Cylindrical Lock

An ANSI/BHMA Grade 2 lever lock which provides a combination of value and performance, the CL3800 Series is designed to be used in light commercial applications, while complementing the look of other Corbin Russwin cylindrical locks.

Function:

Deadlocking latchbolt by lever either side except when turn button locks outside lever. (Lever handle is free-wheeling in locked position). Pushing turn button locks outside lever, requiring use of key outside to unlock.
Turning inside lever unlocks outside lever.
Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position. Turning inside lever unlocks outside lever.
Inside lever always free.

Vandal Resistance: All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position.

Certifications:

CSFM - California State Fire Marshal Approved (old)
UL listed and UL10c compliant
Americans with Disabilities Act (ADA) Compliant
Buy American Act*

*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
UL-cUL Listed for use on fire doors having a rating up to and including 3-hours
Florida Building Code Windstorm Certified
ANSI/BHMA A156.2, Series 4000, Grade 2

More Information

Specifications	Std. Strike Height: 4-7/8" Std. Strike Width: 1-1/4" Screws: Combination Cylinder Type: Conventional Cylinder # Pins: 6 Keying: Keyed Different # of Keys: 2 Key(s): Cut Std. Latch Backset Dim: 2-3/4" Latch Bore Diameter: 1" Bore Hole Diameter: 2-1/8" Std. Latch Number: 600F10 Rose/Escutcheon Design: D Rose Function Family: Entrance Handing: Not Handed Std. Latch Type: Dead Latch (Guarded) Lock Face Size: 2-1/4" x 1-1/8" Std. Strike Number: 217L13 Door Thickness: 1-3/8" - 1-3/4" Bolt Projection: 1/2" Latch Std. Strike Type: ANSI Strike
UPC	722208646698
