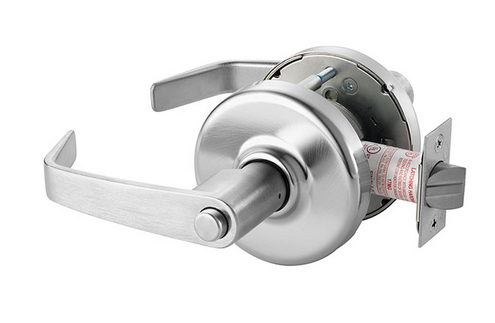

Corbin Russwin CLX3320 Heavy Duty Grade 1 Privacy Bath/Bedroom Cylindrical Lock

The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is the perfect blend of elegance and strength, designed for high-traffic areas where both aesthetics and security are paramount. Crafted from premium materials for exceptional durability and reliability, it offers a wide range of industry-standard finishes and decorative levers to complement any décor.

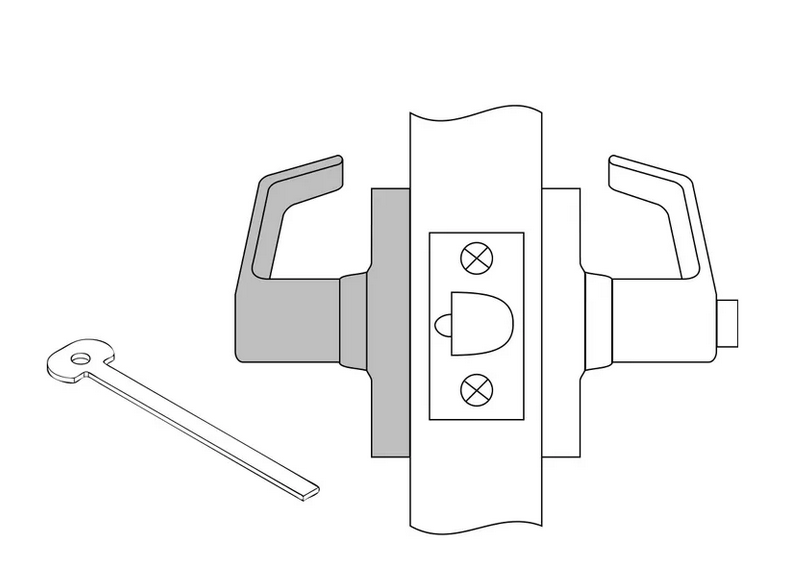

Function:

Outside lever locked by push button (lever handle is freewheeling in locked position).
Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door.
Inside lever always free.

Certifications:

Environmental Product Declaration (EPD)
CSFM - California State Fire Marshal Approved (old)
Florida Building Code Approved FL# 3067
UL listed and UL10c compliant
Americans with Disabilities Act (ADA) Compliant
UL-cUL Listed for use on fire doors having a rating up to and including 3-hours
NFPA 80 Compliant
Florida Building Code Windstorm Certified
UL 437 listed when using Access 3 and Pyramid high-security UL 437 cylinders
ANSI/BHMA A156.2, Series 4000, Grade 1

More Information

Specifications	Cylinder Type: Non-Keyed Handing: Non-handed Door Thickness: 1-3/4" to 2" Bolt Projection: 1/2" Std. Strike Height: 4-7/8" Std. Strike Width: 1-1/4" Lock Face Size: 1-1/8" x 2-1/4" Std. Strike Number: SA114 Std. Strike Type: ANSI Curved Lip Strike Screws: Wood/Machine Screws Std. Latch Backset Dim: 2-3/4" Latch Bore Diameter: 1" Bore Hole Diameter: 2-1/8" Rose/Escutcheon Design: D Rose Rose/Escutcheon Dimensions: 3-1/2" Std. Latch Type: Springlatch Std. Latch Number: 867F20

Specifications
