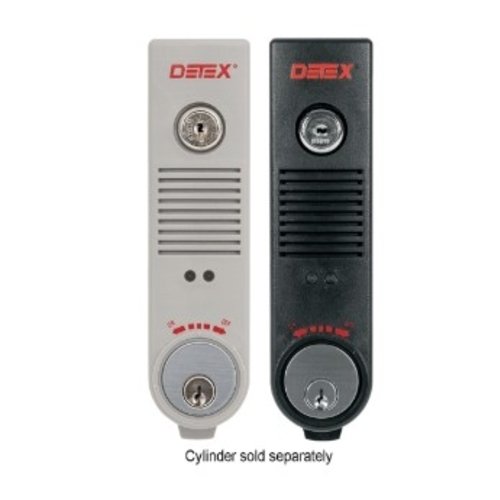

Detex EAX-500W Weatherized Surface Mounted Exit Alarm
Detex EAX-500W Weatherized Surface Mounted Exit Alarm

Detex EAX-500W Weatherized Surface Mounted Exit Alarm

SKU: EAX-500W-Black-W-CYL

Brand : Detex

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$369.32
$369.32
Finish: BLACK
Cylinder Options: W-CYL- Ilco Mortise Cylinder
Subtotal: $369.32
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Low cost, self contained door alarm that sounds during unauthorized use of door or gate
  • Tapered Cover allows for installation on narrow stile doors
  • Alarm can only be silenced with proper control key
  • Particularly designed for use at emergency exits that open to the outdoors or wet environment

Secured and trusted checkout with

Details

Detex EAX-500W Weatherized Surface Mounted Exit Alarm

The Detex EAX-500W is designed for applications that require a battery-powered alarm on secured doors, particularly emergency exits that open to the outdoors or wet environment. The alarm, with approximately 100dB, will sound when someone attempts an unauthorized exit. The redesigned shape and smaller size of the EAX-500W makes it the choice for quick and easy installations on emergency exit and restricted doors.

Cylinder not included unless selected.

Features:

  • Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate
  • Tapered cover allows for installation on narrow stile doors
  • Intelligent circuit senses the external magnet location automatically and sets the correct door handing
  • Alarm can only be silenced by proper control key
  • Secure, tamper resistant housing
  • LED visual and audible arming indicators
Read more
More Information
Specifications
  • Weatherized electronics certified to Driving Rain and Salt Fog Test
  • 1 1/8” Mortise cylinder required with standard Yale cam to turn on alarm or off, not included
  • 9 VDC battery powered with Low Battery Alert
  • LED visual arming indicators
  • Alarm accepts 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale cam. Cylinders not included
  • Extended bypass allows alarm to remain bypassed when the door is open and automatically rearm upon door closing
  • Approximate 100dB piezo alarm
  • Mortise cylinder key-switch arming
  • Manual arming, disarming and rearming
  • Audible arming indicators
  • Field selectable 2-minute auto rearm
  • Field selectable status indicators
  • In-swinging door applications might require use of inswinging kit (#102644 )
UPC 722208641594
