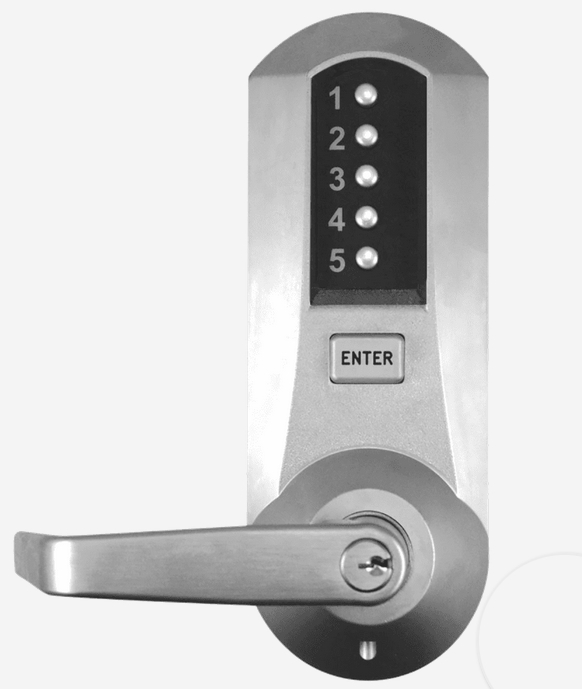

DormaKaba 5021XSWL-26D-41 Cylindrical Combination Lever Lock, 2-3/4" Backset, 1/2" Throw Latch, KIL, Schlage C Keyway, Satin Chrome

• Backset:
  • Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
  • Exit Device: Varies by Exit Device
  • Mortise: 2¾" (70 mm) backset
• Latch: ½" (13 mm) latch, ¾" (19 mm) latch (optional)
• Exit Device: Not supplied (see list on below for compatibility)
• Exit Device Latch: Supplied with Exit Device
• Minimum Stile Recommended: 5" (127 mm)
• Exit Device Compatibility—Simplex 5000 Exit Trim
  • Arrow S1250, Dorex 8500R/8500F, Sargent 8888
  • Arrow S3883F/S3800, Dorex 9500PR/9500FR, Von Duprin 22/22F
  • Black & Decker (K-2) QED111/112, dormakaba 9300/F9300, Von Duprin 98/98F
  • Cal Royal 9800, Monarch 18R*, F18R*, Von Duprin 99/99F
  • Cal Royal 2200, Precision 21/FL21, Von Duprin XP98/99
  • Corbin Russwin ED5200/5200A, Sargent 2828, Yale YME2100/2100
  • Detex 1001 BP1, Sargent 3828, Yale 7100
  • Detex 10/F10 Series, Sargent 8810E/8800

*(requires special K-Hub Adapter)

• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
• Door Thickness:
  • Cylindrical: 1⅜" (35 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (51 mm).
  • Exit Trim and Mortise: 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm).
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant, wear tested for extensive use in indoor and outdoor applications
• Fire Rating: 3-hour UL/ULC fire rating for "A" label doors and installed with an existing fire-ratedexit device (where applicable)
• Warranty: Three-year warranty
