Dormakaba L1021 Simplex Mechanical Pushbutton Lever Lock with Key Override

SKU: LL1021B-26D-41

Brand : Dormakaba

In Stock

Usually Ships Next Day

$562.59; $562.59
Unit price: per

Finish: US26D

Key Override: Prepped for B-Best type SFIC

Prepped for B-Best type SFIC Prepped for M-Medeco/Yale/ASSA/Abloy LFIC Prep Prepped for S-Schlage FSIC

Door Handing: Left Handed

Left Handed Right Handed

Product variants

Quantity:

Subtotal: $562.59

Questions? Live Chat, Email or Call 332-255-3200

Quick Overview

Factory handed, not field reversible
Single access code
Key override SFIC or FSIC (cores sold separately)

Secured and trusted checkout with

Details

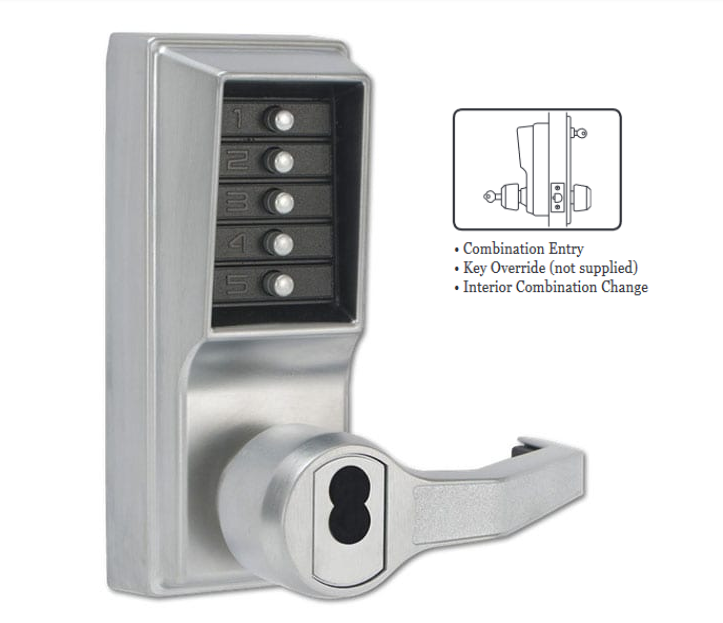

Dormakaba L1021 Simplex Mechanical Pushbutton Lever Lock with Key Override

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features:

Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Factory-handed; not field reversible
Key Override (Optional):
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included

More Information

Specifications	Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes. Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors. Numeric Keypad: Vandal resistant, solid metal pushbuttons Handing: Factory-handed; not field reversible Backset: 2¾" (70 mm) Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional) Minimum Stile Recommended: 5" (127 mm) Strike: Standard strike plate; ASA strike plate Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors Warranty: 3-year warranty Standard Finishes: Satin Chrome 26D (626) Antique Brass 05 (609)
UPC	722208645158

Specifications

Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors.
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed; not field reversible
Backset: 2¾" (70 mm)
Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
Minimum Stile Recommended: 5" (127 mm)
Strike: Standard strike plate; ASA strike plate
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
Standard Finishes:
- Satin Chrome 26D (626)
- Antique Brass 05 (609)
