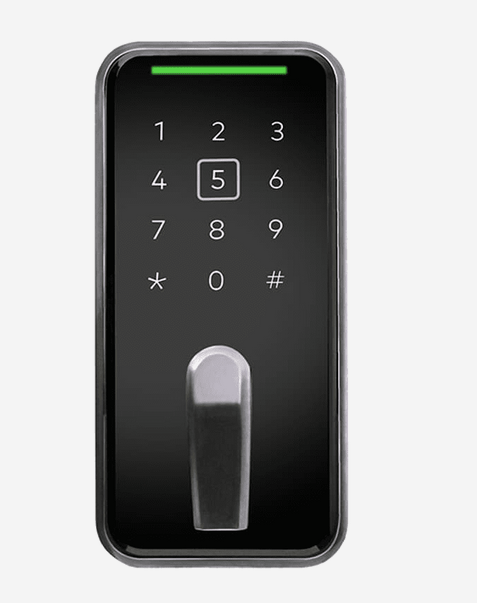

DormaKaba MD0032-ECB-CB-0 Grade 2 Saffire LX-D Electronic Deadbolt Lockset with Clutch Mechanism, Built-in Contactless RFID Reader, Standalone, Electronic Override, Vertical Mounting, BLE Enabled, Satin Chrome

DormaKaba MD0032-ECB-CB-0 Grade 2 Saffire LX-D Electronic Deadbolt Lockset with Clutch Mechanism, Built-in Contactless RFID Reader, Standalone, Electronic Override, Vertical Mounting, BLE Enabled, Satin Chrome

SKU: MD0032-ECB-CB-0

Brand : Dormakaba

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$348.00
$348.00
Subtotal: $348.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

DormaKaba MD0032-ECB-CB-0  Grade 2 Saffire LX-D Electronic Deadbolt Lockset with Clutch Mechanism, Built-in Contactless RFID Reader, Standalone, Electronic Override, Vertical Mounting, BLE Enabled, Satin Chrome

Electronic deadbolt lockset with clutch mechanism and built-in contactless RFID reader

Saffire LX-D Series features sophisticated RFID technology in a contemporary design. Easy-to-use, flexible and secure,
multihousing properties now have the option of issuing mobile credentials for added resident convenience.

The Saffire LX-D Series is equipped with Bluetooth Low Energy (BLE) technology, which gives residents the added convenience of using a smart device, in addition to fobs, to access their residence, common areas and the perimeter. Our key delivery platform issues and authenticates mobile credentials through BlueSky, dormakaba’s mobile access app.

Lock operation

  • No Touring: New credentials automatically cancel prior credential when brought to lock
  • Electronic key levels: User defined, customizable key levels & key groups tailored for your community. Individual levels for residents, leasing, maintenance, services and vendors.
  • Date/time stamp: Real time: date and hours/minutes; automatically adjusts for daylight savings time
  • Programming & audit trail downloading: Handheld unit incorporating Near Field Communication interface and FW/Security features
  • Lockout mod: Set by authorized key
  • Credentials accepted:
    • Mifare Ultralight C: Guest Keys
    • Mifare DESFire: Guest and Staff Keys (DESFire EV3 2k, DESFire EV2 4k, DESFire EV3 4k, DESFire EV3 8k)
    • Mifare Plus: Guest Keys (Mifare Plus 1K), Staff Keys (Mifare Plus S 1k, Mifare Plus S 2k, Mifare Plus S 4k)
    • Mifare Classic: Guest Keys (Mini), Staff (Classic 1k, Classic 4k)
  • Feedback LED: Light indicators
  • Diagnostics: Handheld display
  • Audit memory: Most recent 4,000 events



Read more
More Information
Specifications
  • Handing: Field handed
  • Finish: Satin chrome
  • Door Thickness: From 1 3/8” to 2 1/8” (35mm to 54mm)
  • Locking Options: ANSI/BHMA Grade 2 with 1” deadbolt
  • Batteries: 3 AA for up to 2 years. Low battery indicator for preventative maintenance
  • Concealed key override: Electronic battery backup
  • Online Configuration Messenger: Online available this fall: Lock controller board with Messenger capability
  • BLE enabled: Ready to operate using dormakaba mobile access solutions.
  • Certification: BHMA A156.25; BHMA 156.36; Florida Building Code HVHZ & non-HVHZ
  • Accessibility standard: ADA (Americans with Disability Act) compliant levers and thumbturns (must be installed according ADA and local requirements)
  • Fire rating: Meets UL 10C and ULC S-104, on fire door rated up to and including 3 hours
  • Electronics: Compliant with RE Directive 2014/53/EU for electromagnetic compatibility and FCC part 15 and RSS-247 Industry Canada requirements.
  • Environmental operating conditions: -31°F to +158°F (-35°C to +70°C), 0% to 90% non-condensing humidity at 86°F (30°C)
    Meets IP54
  • Warranty: Standard warranty Two years
